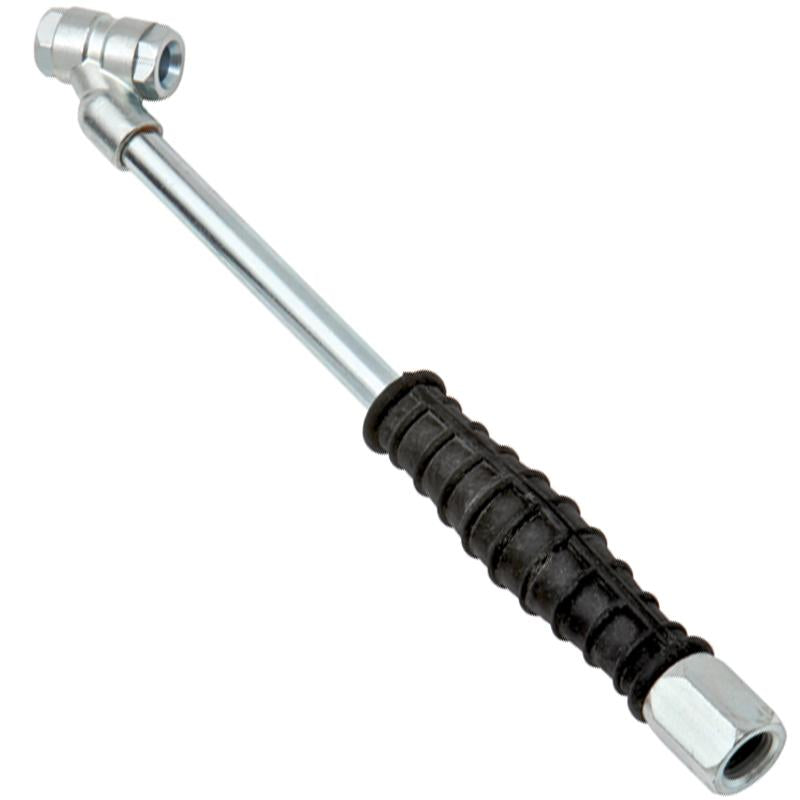

PCL CO1A13 Twin-Angle Air Chuck, , 1/4" FNPT Inlet-Open Chuck

Description

PCL Tire Inflation CO1A13 Twin-Angle Air Chuck, , 1/4" FNPT Inlet-Open Chuck

Part Number: CO1A13

• Suitable for inflation of twin tires
• Color coded handles - black for Open-End and red for Closed-End
• Choice of stem length

There are two types of connectors. Therefore, it's important when purchasing connectors to specify whether a Closed or Open-End type is required.

A Closed-End connector is used when air is supplied directly from a main air line (i.e. compressor or air receiver). A non-return valve unseats on connection to the tire's valve allowing air to flow into the tire. The handles on these connectors are red in color.

An Open End connector is used with the MK3 Tire Inflator, PCL wall gauges, and PCL portable gauges. This connector has a pin which unseats the tire's valve when in use. The handles on these connectors are black in color.

The Angled Twin Chucks are available in both Open and Closed Valve Styles.

Specifications

• Suitable for inflation of twin tires
• Color coded handles - black for Open-End and red for Closed-End
• Choice of stem length
• Angled Twin Chuck
• Valve Style Open end
• Inlet Size 1/4" NPT
