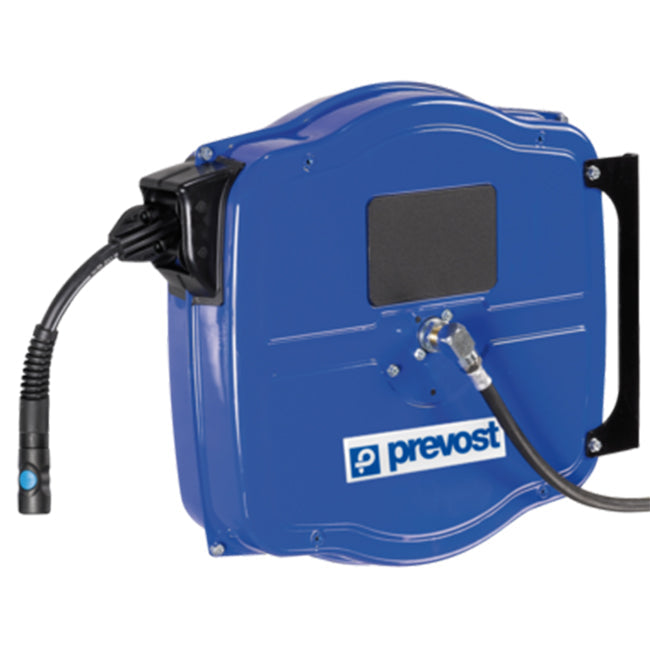

Prevost Air Closed Hose Reels - DGF Series - Large Industrial Type - Rubber Hose
Prevost Air Closed Hose Reels - DGF Series - Large Industrial Type - Rubber Hose
BRAND: Prevost
SKU: DGF 0810IS
In Stock
Couldn't load pickup availability
Prevost Air Closed Hose Reels - DGF Series - Large Industrial Type - Rubber Hose
Models: DGF 0810IS - DGF 0815IS - DGF 0820IS - DGF 1010IS - DGF 1015IS - DGF 1310IS - DGF 0810US - DGF 0815US - DGF 0820US - DGF 1010US - DGF 1015US - DGF 1310US
Prevost Air Closed Hose Reels – DGF Series (Large Industrial Type) are large enclosed reels built for medium- and high-consumption pneumatic tools, using an oil-, grease-, and water-resistant rubber hose. The reel features a hot-dip galvanized molded steel housing, a fixed bracket, and the option to add a 140° swivel bracket (DGF PIV) for better working-angle coverage.
- Flow rate: 18 CFM
- ID passage: 1/4 inch
- Max. output pressure: 174 psi
- Temperature: 5°F to 104°F
Dimensions
| Model# | A inch | B inch |
|---|---|---|
| DGF 0810IS | 20.47 | 18.19 |
| DGF 0815IS | 20.47 | 18.19 |
| DGF 0820IS | 20.47 | 18.19 |
| DGF 1010IS | 20.47 | 18.19 |
| DGF 1015IS | 20.47 | 18.19 |
| DGF 1310IS | 20.47 | 18.19 |
| DGF 0810US | 20.47 | 18.19 |
| DGF 0815US | 20.47 | 18.19 |
| DGF 0820US | 20.47 | 18.19 |
| DGF 1010US | 20.47 | 18.19 |
| DGF 1015US | 20.47 | 18.19 |
| DGF 1310US | 20.47 | 18.19 |

Coupling Profiles
USI - Automotive
prevo S1 USI quick safety coupling
Coupling profile: Truflate interchange profile
ISI - Industrial
prevo S1 ISI quick safety coupling
Coupling profile: ISO 6150 series B
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Model#: DGF 0810IS
- Net Weight: 15,4 KG ( 34.1 Lbs)
- Ø int. (in): 5/16 inch
- Length: 32.81 ft
- Coupler Profile: ISI - Industrial
Model#: DGF 0815IS
- Net Weight: 16,4 KG ( 36.3 Lbs)
- Ø int. (in): 5/16 inch
- Length: 49.215 ft
- Coupler Profile: ISI - Industrial
Model#: DGF 0820IS
- Net Weight: 17,2 KG ( 37.9 Lbs)
- Ø int. (in): 5/16 inch
- Length: 65.62 ft
- Coupler Profile: ISI - Industrial
Model#: DGF 1010IS
- Net Weight: 15,4 KG ( 34.1 Lbs)
- Ø int. (in): 3/8 inch
- Length: 32.81 ft
- Coupler Profile: ISI - Industrial
Model#: DGF 1015IS
- Net Weight: 16,5 KG ( 36.4 Lbs)
- Ø int. (in): 3/8 inch
- Length: 49.215 ft
- Coupler Profile: ISI - Industrial
Model#: DGF 1310IS
- Net Weight: 17,4 KG ( 38.4 Lbs)
- Ø int. (in): 1/2 inch
- Length: 32.81 ft
- Coupler Profile: ISI - Industrial
Model#: DGF 0810US
- Net Weight: 15,4 KG ( 34.1 Lbs)
- Ø int. (in): 5/16 inch
- Length: 32.81 ft
- Coupler Profile: USI - Automotive
Model#: DGF 0815US
- Net Weight: 16,4 KG ( 36.3 Lbs)
- Ø int. (in): 5/16 inch
- Length: 49.215 ft
- Coupler Profile: USI - Automotive
Model#: DGF 0820US
- Net Weight: 17,2 KG ( 37.9 Lbs)
- Ø int. (in): 5/16 inch
- Length: 65.62 ft
- Coupler Profile: USI - Automotive
Model#: DGF 1010US
- Net Weight: 15,4 KG ( 34.1 Lbs)
- Ø int. (in): 3/8 inch
- Length: 32.81 ft
- Coupler Profile: USI - Automotive
Model#: DGF 1015US
- Net Weight: 16,5 KG ( 36.4 Lbs)
- Ø int. (in): 3/8 inch
- Length: 49.215 ft
- Coupler Profile: USI - Automotive
Model#: DGF 1310US
- Net Weight: 17,4 KG ( 38.4 Lbs)
- Ø int. (in): 1/2 inch
- Length: 32.81 ft
- Coupler Profile: USI - Automotive
