Prevost Air Closed Hose Reels - DRF Series - Medium - Economy Type - Polyurethane Hose
Models: DRF 0812IS - DRF 0815IS - DRF 1010IS - DRF 1012IS - DRF 1015IS - DRF 0812US - DRF 0815US - DRF 1010US - DRF 1012US

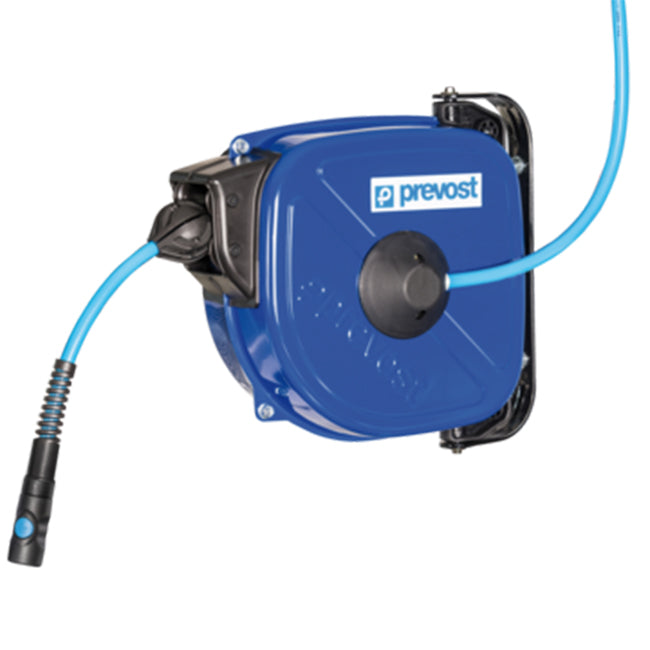

Prevost Air Closed Hose Reels – DRF Series (Medium / Economy Type) provide an enclosed compressed-air reel for close work and air tools, using a polyurethane/thermoplastic hose with reinforced fabric braid. The reel includes a galvanized steel housing, 180° swivel bracket for wall/overhead mounting, a 360° rotating coupling protected by a cover, and a prevo S1 quick safety coupling to help prevent hose whip and allow single-press depressurization/disconnection.
- Flow rate: 18 CFM
- ID passage: 1/4 inch
- Max. output pressure: 174 psi
- Temperature: 5°F to 149°F
Dimensions
| Model# | A inch | B inch |
|---|---|---|
| DRF 0812IS | 13.39 | 11.89 |
| DRF 0815IS | 14.57 | 13.27 |
| DRF 1010IS | 13.39 | 11.89 |
| DRF 1012IS | 14.57 | 13.27 |
| DRF 1015IS | 14.57 | 13.27 |
| DRF 0812US | 13.39 | 11.89 |
| DRF 0815US | 14.57 | 13.27 |
| DRF 1010US | 13.39 | 11.89 |
| DRF 1012US | 14.57 | 13.27 |
Coupling Profiles
USI - Automotive
prevo S1 USI quick safety coupling
Coupling profile: Truflate interchange profile
ISI - Industrial
prevo S1 ISI quick safety coupling
Coupling profile: ISO 6150 series B
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Model#: DRF 0812IS
- Net Weight: 6,0 KG ( 13.2 Lbs)
- Ø int. (in): 5/16 inch
- Length: 39.372 ft
- Coupler Profile: ISI - Industrial
Model#: DRF 0815IS
- Net Weight: 7,0 KG ( 15.4 Lbs)
- Ø int. (in): 5/16 inch
- Length: 49.215 ft
- Coupler Profile: ISI - Industrial
Model#: DRF 1010IS
- Net Weight: 5,8 KG ( 12.8 Lbs)
- Ø int. (in): 3/8 inch
- Length: 32.81 ft
- Coupler Profile: ISI - Industrial
Model#: DRF 1012IS
- Net Weight: 6,6 KG ( 14.6 Lbs)
- Ø int. (in): 3/8 inch
- Length: 39.372 ft
- Coupler Profile: ISI - Industrial
Model#: DRF 1015IS
- Net Weight: 7,2 KG ( 15.9 Lbs)
- Ø int. (in): 3/8 inch
- Length: 49.215 ft
- Coupler Profile: ISI - Industrial
Model#: DRF 0812US
- Net Weight: 6,0 KG ( 13.3 Lbs)
- Ø int. (in): 5/16 inch
- Length: 39.372 ft
- Coupler Profile: USI - Automotive
Model#: DRF 0815US
- Net Weight: 7,6 KG ( 16.8 Lbs)
- Ø int. (in): 5/16 inch
- Length: 49.215 ft
- Coupler Profile: USI - Automotive
Model#: DRF 1010US
- Net Weight: 5,8 KG ( 12.8 Lbs)
- Ø int. (in): 3/8 inch
- Length: 32.81 ft
- Coupler Profile: USI - Automotive
Model#: DRF 1012US
- Net Weight: 6,6 KG ( 14.6 Lbs)
- Ø int. (in): 3/8 inch
- Length: 39.372 ft
- Coupler Profile: USI - Automotive
