Prevost Air Closed Hose Reels - DSF Series - Small - Polyurethane Hose
Prevost Air Closed Hose Reels - DSF Series - Small - Polyurethane Hose
BRAND: Prevost
SKU: DSF 0805IS
In Stock
Couldn't load pickup availability
Prevost Air Closed Hose Reels - DSF Series - Small - Polyurethane Hose
Models: DSF 0805IS - DSF 1003IS - DSF 0805US - DSF 1003US

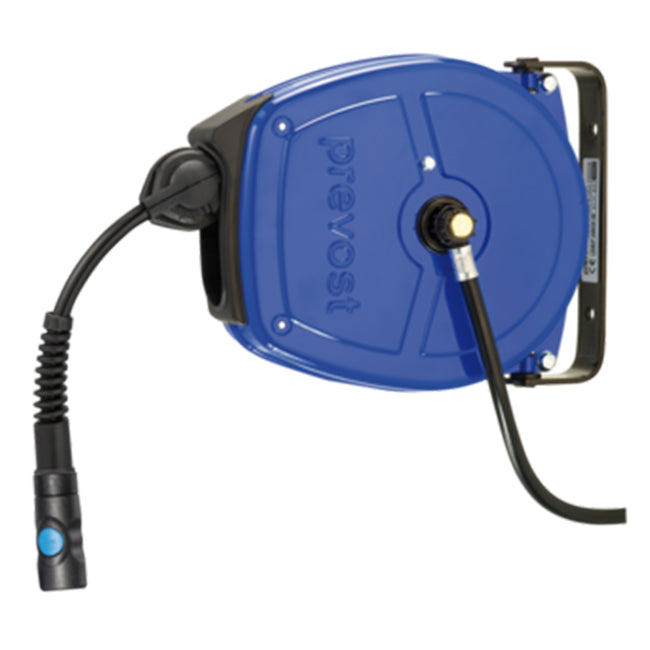

Prevost Air Closed Hose Reels – DSF Series (Small) are lightweight, compact closed-drum reels for individual compressed-air distribution and close work, built with a galvanized steel housing and a tough polyurethane hose with fabric braid. They mount on a 180° swivel bracket and connect via a 40 in. supply hose to a 360° rotating coupling, with a prevo S1 quick safety coupling at the outlet for safer tool disconnects.
- Flow rate: 23 CFM
- ID passage: 1/4 inch
- Max. output pressure: 174 psi
- Temperature: 5°F to 104°F
Dimensions
| Model# | A inch | B inch |
|---|---|---|
| DSF 0805IS | 10.83 | 8.58 |
| DSF 1003IS | 10.83 | 8.58 |
| DSF 0805US | 10.83 | 8.58 |
| DSF 1003US | 10.83 | 8.58 |
Coupling Profiles
USI - Automotive
prevo S1 USI quick safety coupling
Coupling profile: Truflate interchange profile
ISI - Industrial
prevo S1 ISI quick safety coupling
Coupling profile: ISO 6150 series B
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Model#: DSF 0805IS
- Net Weight: 3,1 KG ( 6.9 Lbs)
- Ø int. (in): 5/16 inch
- Length: 16.405 ft
- Coupler Profile: ISI - Industrial
Model#: DSF 1003IS
- Net Weight: 2,9 KG ( 6.4 Lbs)
- Ø int. (in): 3/8 inch
- Length: 9.843 ft
- Coupler Profile: ISI - Industrial
Model#: DSF 0805US
- Net Weight: 3,0 KG ( 6.7 Lbs)
- Ø int. (in): 5/16 inch
- Length: 16.405 ft
- Coupler Profile: USI - Automotive
Model#: DSF 1003US
- Net Weight: 3,0 KG ( 6.7 Lbs)
- Ø int. (in): 3/8 inch
- Length: 9.843 ft
- Coupler Profile: USI - Automotive
