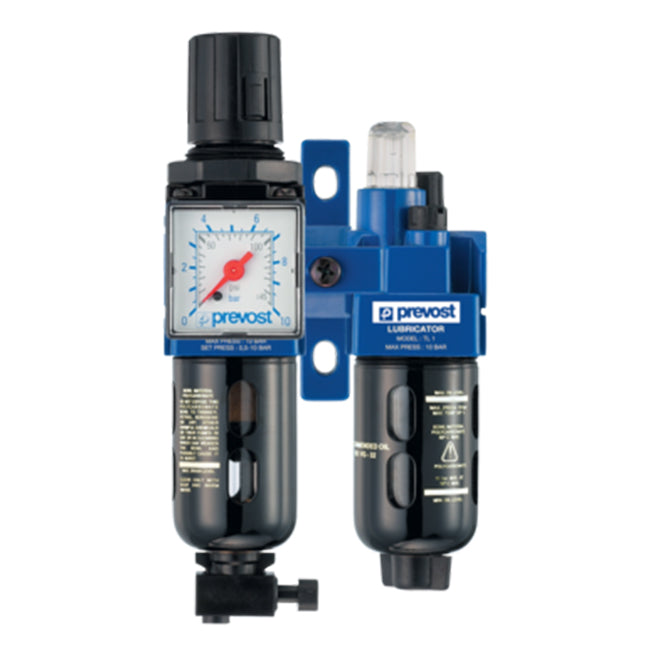

Prevost ALTO - 2-piece-set - Filter-Regulator-Lubricator (gauge Included) With Wall Bracket
Prevost ALTO - 2-piece-set - Filter-Regulator-Lubricator (gauge Included) With Wall Bracket
BRAND: Prevost
SKU: TB SM201
In Stock
Couldn't load pickup availability
Prevost ALTO - 2-piece-set - Filter-Regulator-Lubricator (gauge Included) With Wall Bracket
Models: TB SM201 - TB SM203 - TB SM202
-
Equipped with a pressure gauge: 0 - 145 psi
- Filtration: 25 µm
- Max. output pressure: 174 psi
- Temperature: 41°F to 122°F
Dimensions
| Model# | A inch | B inch |
|---|---|---|
| TB SM201 | 3.62 | 6.69 |
| TB SM203 | 6.14 | 11.02 |
| TB SM202 | 4.88 | 8.66 |
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Model#: TB SM201
- Female thread: NPT1/4
- A Dimension: 3.622 in.
- B Dimension: 6.693 in.
- Flow rate: 17.65 cfm (at 87 psi, ΔP=14 psi)
- Max operating pressure: 174 psi
- Filtration: 25 µm
- Equipped with a pressure gauge: 0 - 145 psi
Model#: TB SM203
- Female thread: NPT1/2
- A Dimension: 6.142 in.
- B Dimension: 11.024 in.
- Flow rate: 98.90 cfm (at 87 psi, ΔP=14 psi)
- Max operating pressure: 174 psi
- Filtration: 25 µm
- Equipped with a pressure gauge: 0 - 145 psi
Model#: TB SM202
- Female thread: NPT3/8
- A Dimension: 4.882 in.
- B Dimension: 8.661 in.
- Flow rate: 44.15 cfm (at 87 psi, ΔP=14 psi)
- Max operating pressure: 174 psi
- Filtration: 25 µm
- Equipped with a pressure gauge: 0 - 145 psi
