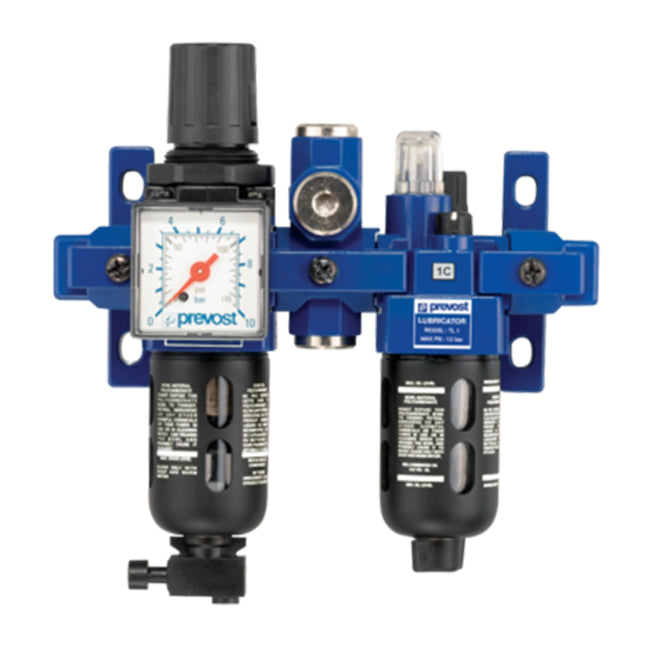

Prevost ALTO - 2-piece-set - Filter-Regulator-Lubricator (gauge Included) With Wall Bracket, Diverter Block And Pipe Adapters
Prevost ALTO - 2-piece-set - Filter-Regulator-Lubricator (gauge Included) With Wall Bracket, Diverter Block And Pipe Adapters
BRAND: Prevost
SKU: TB SME201
In Stock
Couldn't load pickup availability
Prevost ALTO - 2-piece-set - Filter-Regulator-Lubricator (gauge Included) With Wall Bracket, Diverter Block And Pipe Adapters
Models: TB SME201 - TB SME202 - TB SME203
- Equipped with a pressure gauge: 0 - 145 psi
- 4 outlets for non-lubricated air
- Filtration: 25 µm
- Max. output pressure: 174 psi
Dimensions
| Model# | A inch | B inch |
|---|---|---|
| TB SME201 | ||
| TB SME202 | 9.21 | 8.66 |
| TB SME203 | 9.61 | 11.02 |
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Model#: TB SME201
- Net Weight: 0,9 KG ( 2.0 Lbs)
- Female thread: NPT1/4
- A Dimension: 5.276 in.
- B Dimension: 6.693 in.
- Flow rate: 17.65 cfm (at 87 psi, ΔP=14 psi)
- Max operating pressure: 174 psi
- Filtration: 25 µm
- Equipped with a pressure gauge: 0 - 145 psi
- USA note: Main ports are NPT, but the pressure gauge port is G 1/8 (BSPP) — adapter may be needed for NPT gauges.
Model#: TB SME202
- Net Weight: 1,6 KG ( 3.6 Lbs)
- Female thread: NPT3/8
- A Dimension: 9.213 in.
- B Dimension: 8.661 in.
- Flow rate: 44.15 cfm (at 87 psi, ΔP=14 psi)
- Max operating pressure: 174 psi
- Filtration: 25 µm
- Equipped with a pressure gauge: 0 - 145 psi
- USA note: Main ports are NPT, but the pressure gauge port is G 1/8 (BSPP) — adapter may be needed for NPT gauges.
Model#: TB SME203
- Net Weight: 2,6 KG ( 5.7 Lbs)
- Female thread: NPT1/2
- A Dimension: 9.606 in.
- B Dimension: 11.024 in.
- Flow rate: 98.90 cfm (at 87 psi, ΔP=14 psi)
- Max operating pressure: 174 psi
- Filtration: 25 µm
- Equipped with a pressure gauge: 0 - 145 psi
- USA note: Main ports are NPT, but the pressure gauge port is G 1/8 (BSPP) — adapter may be needed for NPT gauges.
