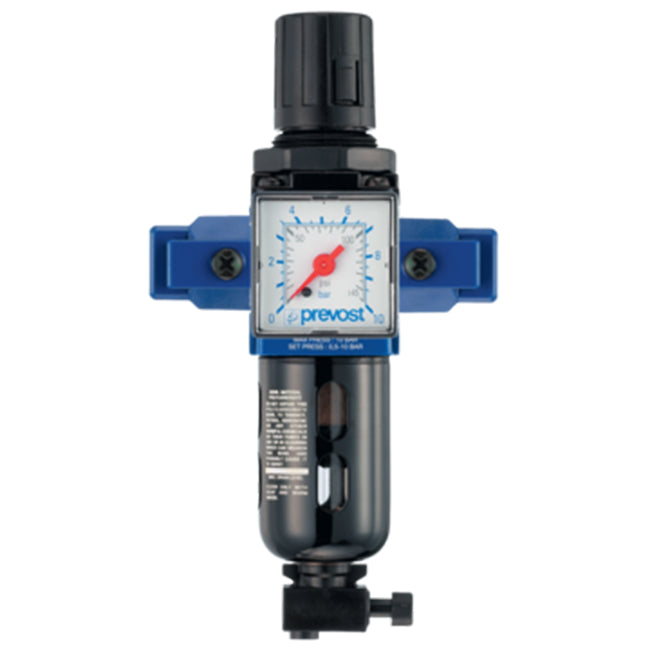

Prevost ALTO - Filter-Regulator (gauge Included) With Wall Bracket And Pipe Adapters
Prevost ALTO - Filter-Regulator (gauge Included) With Wall Bracket And Pipe Adapters
BRAND: Prevost
SKU: TM PSM201
In Stock
Couldn't load pickup availability
Prevost ALTO - Filter-Regulator (gauge Included) With Wall Bracket And Pipe Adapters
Models: TM PSM201 - TM PSM202 - TM PSM203
- Equipped with a pressure gauge: 0 - 145 psi
- Filtration: 25 µm
- Max. output pressure: 174 psi
- Temperature: 41°F to 122°F
Dimensions
| Model# | A inch | B inch |
|---|---|---|
| TM PSM201 | 3.701 | 6.693 |
| TM PSM202 | 4.449 | 8.661 |
| TM PSM203 | 5.276 | 11.024 |
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Model#: TM PSM201
- Net Weight: 0,6 KG ( 1.4 Lbs)
- Female thread: NPT1/4
- A Dimension: 3.701 in.
- B Dimension: 6.693 in.
- Flow rate: 19.43 cfm (at 87 psi, ΔP=14 psi)
- Max operating pressure: 174 psi
- Filtration: 25 µm
- Equipped with a pressure gauge: 0 - 145 psi
- USA note: NPT thread (USA compatible).
Model#: TM PSM202
- Net Weight: 0,9 KG ( 2.1 Lbs)
- Female thread: NPT3/8
- A Dimension: 4.449 in.
- B Dimension: 8.661 in.
- Flow rate: 63.54 cfm (at 87 psi, ΔP=14 psi)
- Max operating pressure: 174 psi
- Filtration: 25 µm
- Equipped with a pressure gauge: 0 - 145 psi
- USA note: NPT thread (USA compatible).
Model#: TM PSM203
- Net Weight: 1,7 KG ( 3.9 Lbs)
- Female thread: NPT1/2
- A Dimension: 5.276 in.
- B Dimension: 11.024 in.
- Flow rate: 105.96 cfm (at 87 psi, ΔP=14 psi)
- Max operating pressure: 174 psi
- Filtration: 25 µm
- Equipped with a pressure gauge: 0 - 145 psi
- USA note: NPT thread (USA compatible).
