Quick-Chuck 90028BK Balancer Chuck Kit for 28mm Shaft

Description

Quick-Chuck 90028BK - Balancer Chuck Kit for 28mm Shaft

Part No. 90028BK

The simplest, fastest and most efficient way of adapting truck wheels to your balancer. The 3-Jaw Chuck design offers dead-on centering accuracy along with quick and easy set-up. Fits most Hub-centric wheels with flat faced mounting pads with a wide range, 3.13” to 7.13”, makes the 3-jaw chuck a versatile tool.

Part# 90041 Extended Jaw Set (optional sold separately)

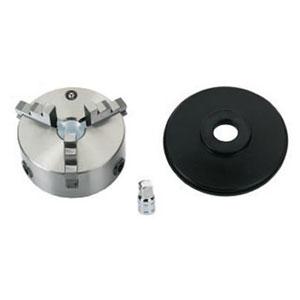

Kit Includes:

• 3-Jaw Chuck Adapter for 28mm Shaft
• Clamping Cup with Protector Ring for 28mm Shaft
• Ratchet Key (For use with Ratchet or Air Ratchet)

Advantages:

• The Balancer Chuck centers itself in the wheel, off the balancer, so weight is not a factor when mounting the assembly onto the balancer shaft.
• An accurate mounting is achieved compared to a steep cone set-up, making it easier for the technician to assure a balanced wheel.
• The Balancer Chucks centering accuracy as well as vertical stability supports wheel while clamping and unclamping.
• No more cones, the 3-jaws cover a wide range of center hole sizes
• Ratchet Key fits 3/8” drive ratchet or air ratchet to tighten and loosen jaws.
• In most clamping applications there are no additional spacers required.
• Fits most brands of wheel balancers

Specifications

• 3-Jaw Chuck Adapter for 28mm Shaft
• Clamping Cup with Protector Ring for 28mm Shaft
• Ratchet Key (For use with Ratchet or Air Ratchet)
• Part# 90041 Extended Jaw Set (optional sold separately)
