ROLAIR 13GRBMHK30 13 HP Base-Mount Gas Truck Mount Air Compressor
ROLAIR 13GRBMHK30 13 HP Base-Mount Gas Truck Mount Air Compressor
BRAND: ROLAIR
SKU: 13GRBMHK30
Ships From Manufacturer
Couldn't load pickup availability
ROLAIR 13GRBMHK30 13 HP Base-Mount Gas Truck Mount Air Compressor
MODELS: 13GRBMHK30
The ROLAIR 13GRBMHK30 13 HP Base-Mount Gas Truck Mount Air Compressor is designed for service vehicles, agricultural applications and other locations where engine-driven compressed air is required. It delivers 23.0 @ 175 PSI.
Its two-stage splash-lubricated pump uses cast-iron cylinders, an aluminum head and crankcase for heat dissipation, ball bearings, bearing inserts, reed valves and an oil sight gauge. Standard equipment includes automatic unloading, a pressure gauge, an ASME-approved safety relief valve, V-belt drive, replaceable intake filter/silencer and an enclosed steel belt guard.
Important Notes:
- The 5.5-13 HP gas basemount configuration is built onto twin tanks without the standard width and height dimensions.
- When ordered with surge tanks, its price is the same as the corresponding 60-gallon model.
- Battery trays are supplied loose and are not installed on gas basemount configurations.
- Use only air-compressor oil of the correct type and viscosity. Do not use detergent motor oil. ROLAIR recommends genuine ROLAIR compressor oil.

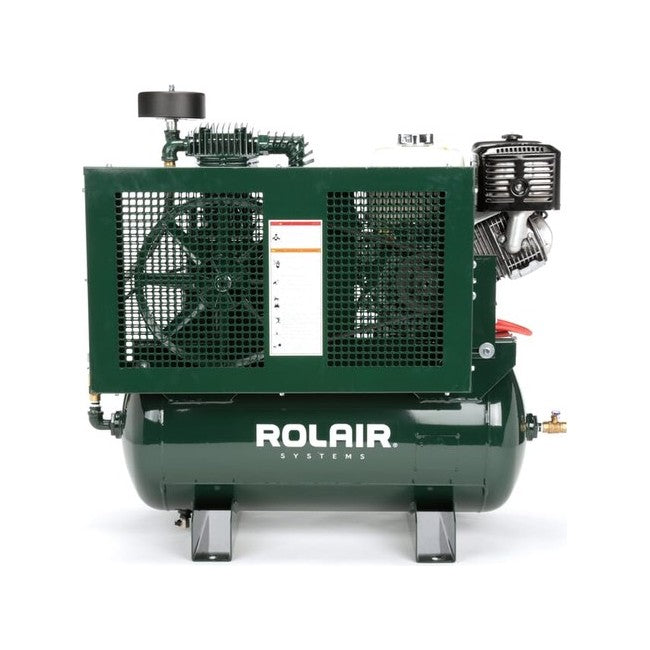

- The air compressor pictured is a stock photo from the manufacturer's website and is not the actual air compressor listed. It is a close representation of the model.
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- Horsepower: 13 HP
- Compressor Stage: Two-Stage
- Power Type: Gas engine
- CFM Delivered: 23.0 @ 175 PSI
- Pump Speed: 1150 RPM
- Lubrication: Splash lubricated
13GRBMHK30 - Base Mount
- Tank Configuration: Base Mount
- Dimensions: 38" L x 20" W x 32" H
- Approximate Shipping Weight: 295 lb.
ROLAIR K30 Pump
Hover to enlarge or select the image to view it full size.
Pump Specifications
- Pump Model: K30
- Maximum Pressure: 200 PSI
- Number of Cylinders: 2
- Low-Pressure Bore: 4.13 in.
- High-Pressure Bore: 2.05 in.
- Stroke: 3.31 in.
- Flywheel Diameter: 15.16 in.
- V-Belts: 2-A
- Intake: 0.75 in.
- Discharge: 0.75 in.
- Oil Capacity: 47 oz.
Standard Equipment
- 15.16-inch aluminum flywheel
- Crankcase breather
- Oil sight glass
- Filter
