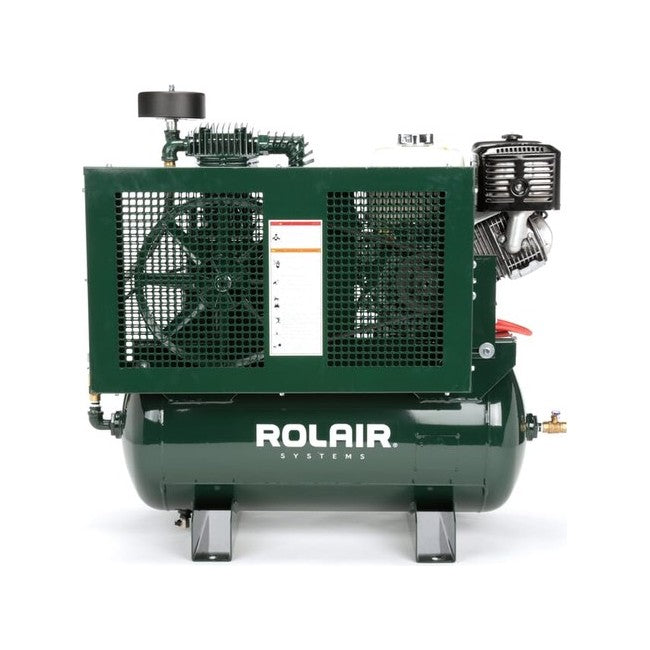

ROLAIR 20GRBMKK60 20 HP Base-Mount Gas Truck Mount Air Compressor
ROLAIR 20GRBMKK60 20 HP Base-Mount Gas Truck Mount Air Compressor
BRAND: ROLAIR
SKU: 20GRBMHK60
Ships From Manufacturer
Couldn't load pickup availability
ROLAIR 20GRBMKK60 20 HP Base-Mount Gas Truck Mount Air Compressor
MODELS: 20GRBMKK60
The ROLAIR 20GRBMKK60 20 HP Base-Mount Gas Truck Mount Air Compressor is designed for service vehicles, agricultural applications and other locations where engine-driven compressed air is required. It delivers 33.7 @ 175 PSI.
Its two-stage splash-lubricated pump uses cast-iron cylinders, an aluminum head and crankcase for heat dissipation, ball bearings, bearing inserts, reed valves and an oil sight gauge. Standard equipment includes automatic unloading, a pressure gauge, an ASME-approved safety relief valve, V-belt drive, replaceable intake filter/silencer and an enclosed steel belt guard.
Important Notes:
- The 20 HP gas basemount is built on a skid and the required surge-tank configuration must be specified when ordering.
- Basemount configurations are not available for electric units and are available only with twin tanks.
- Battery trays are supplied loose and are not installed on gas basemount configurations.
- Use only air-compressor oil of the correct type and viscosity. Do not use detergent motor oil. ROLAIR recommends genuine ROLAIR compressor oil.
- The air compressor pictured is a stock photo from the manufacturer's website and is not the actual air compressor listed. It is a close representation of the model.
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- Horsepower: 20 HP
- Compressor Stage: Two-Stage
- Power Type: Gas engine
- CFM Delivered: 33.7 @ 175 PSI
- Pump Speed: 900 RPM
- Lubrication: Splash lubricated
20GRBMKK60 - Base Mount
- Tank Configuration: Base Mount
- Dimensions: 53" L x 29" W x 32" H
- Approximate Shipping Weight: 436 lb.
ROLAIR K60 Pump
Hover to enlarge or select the image to view it full size.
Pump Specifications
- Pump Model: K60
- Maximum Pressure: 200 PSI
- Number of Cylinders: 4
- Low-Pressure Bore: 4.13 in. x 2
- High-Pressure Bore: 2.05 in. x 2
- Stroke: 3.31 in.
- Flywheel Diameter: 21.65 in.
- V-Belts: 2-B
- Intake: 1.00 in. x 2
- Discharge: 1.00 in.
- Oil Capacity: 98 oz.
Standard Equipment
- 21.65-inch flywheel
- Crankcase breather
- Oil sight glass
- Filters
