ROLAIR H15312K100 15 HP 120 Gallon Horizontal Two-Stage Three-Phase Stationary Air Compressor - K100 Pump
ROLAIR H15312K100 15 HP 120 Gallon Horizontal Two-Stage Three-Phase Stationary Air Compressor - K100 Pump
BRAND: ROLAIR
SKU: H15312K100(A/B)
Ships From Manufacturer
Couldn't load pickup availability
ROLAIR H15312K100 15 HP 120 Gallon Horizontal Two-Stage Three-Phase Stationary Air Compressor - K100 Pump
MODELS: H15312K100
The ROLAIR H15312K100 15 HP 120 Gallon Horizontal Two-Stage Three-Phase Stationary Air Compressor - K100 Pump is a belt-driven stationary electric compressor designed for professional shop and industrial compressed-air applications. It delivers 47.3 @ 175 PSI.
Its two-stage splash-lubricated pump uses cast-iron cylinders, an aluminum head and crankcase for heat dissipation, ball bearings, bearing inserts, reed valves and an oil sight gauge. Standard equipment includes automatic unloading, a pressure gauge, an ASME-approved safety relief valve, V-belt drive, replaceable intake filter/silencer and an enclosed steel belt guard.
Important Notes:
- The listed price includes the magnetic starter, but the starter is supplied loose and is not installed on the compressor.
- The magnetic starter must be installed and connected by a qualified electrician according to the motor nameplate and applicable electrical codes.
- Voltage suffixes: A = 208V, B = 230V and C = 460V. Select the voltage that matches the facility power supply.
- Use only air-compressor oil of the correct type and viscosity. Do not use detergent motor oil. ROLAIR recommends genuine ROLAIR compressor oil.

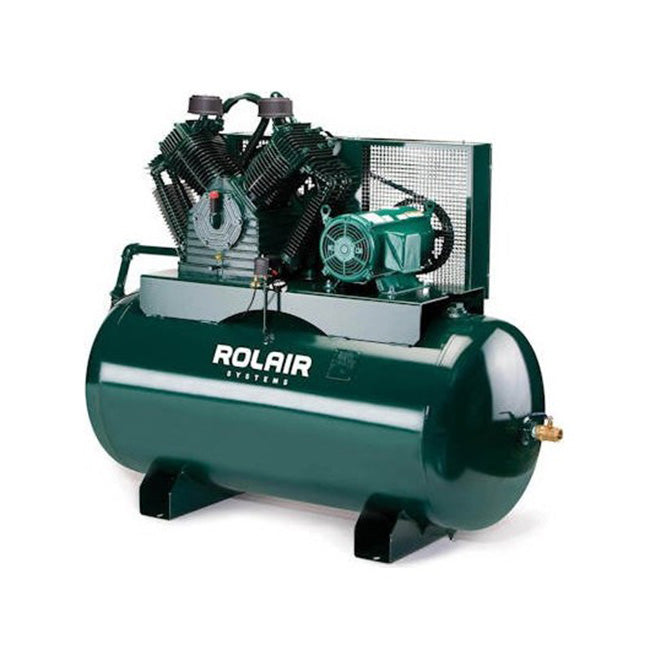

- The air compressor pictured is a stock photo from the manufacturer's website and is not the actual air compressor listed. It is a close representation of the model.
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- Horsepower: 15 HP
- Compressor Stage: Two-Stage
- Power Type: Electric
- Phase: Three-Phase
- CFM Delivered: 47.3 @ 175 PSI
- Pump Speed: 800 RPM
- Motor Speed: 1740 RPM
- Lubrication: Splash lubricated
H15312K100 - 120 Gallon Horizontal - 208V
- Voltage: 208V
- Tank Configuration: 120 Gallons
- Dimensions: 72" L x 30" W x 58" H
- Approximate Shipping Weight: 1095 lb.
H15312K100 - 120 Gallon Horizontal - 230V
- Voltage: 230V
- Tank Configuration: 120 Gallons
- Dimensions: 72" L x 30" W x 58" H
- Approximate Shipping Weight: 1095 lb.
H15312K100 - 120 Gallon Horizontal - 460V
- Voltage: 460V
- Tank Configuration: 120 Gallons
- Dimensions: 72" L x 30" W x 58" H
- Approximate Shipping Weight: 1095 lb.
ROLAIR K100 Pump
Pump Specifications
- Pump Model: K100
- Maximum Pressure: 200 PSI
- Number of Cylinders: 4
- Low-Pressure Bore: 4.72 in. x 2
- High-Pressure Bore: 2.36 in. x 2
- Stroke: 3.74 in.
- Flywheel Diameter: 21.65 in.
- V-Belts: 2-B
- Intake: 1.00 in. x 2
- Discharge: 1.25 in.
- Oil Capacity: 127 oz.
Standard Equipment
- 21.65-inch flywheel
- Crankcase breather
- Oil sight glass
- Filters
Shipping
This item Qualifies for FREE SHIPPING it only applies to destinations within the 48 contiguous United States. Alaska, Hawaii, and any/all US territories and international orders are excluded.
This Free Shipping service is the slowest cheapest way of shipping and is not time sensitive , However you may upgraded to a faster service at check-out for an additional price which is calculated upon check-out according to Zip and State.
*Note:
If you are having trouble checking out or need additional help please call us at (321)-423-5290 so we can give you an updated shipping quote. (321)-423-5290
OR
If you have a special shipping need you need arranged please email
or call us.
Please Review our Terms of Service, Shipping Policy, Return & Refund, Policy Pages.
Shipping Responsibility Disclaimer
Once a package is marked as "Delivered" by the carrier, we are no longer responsible for its whereabouts unless you specifically requested a signature requirement at checkout. If no signature is requested and the package goes missing after delivery, we cannot be held liable for the loss. Additionally, any delivery issues must be reported to us within 12 hours of the marked delivery time. Failure to notify us within this timeframe may result in a forfeiture of claims, as delayed reporting significantly reduces the chances of locating a misdelivered package. If you would like to add insurance to your shipment to protect against potential loss or theft, please inform us before your order ships. Insurance is not included by default.
SHIPPING COST DISCLAIMER
Shipping can be very complicated, especially with LTL Freight items, and it can be challenging to always quote the exact shipping price with complete accuracy. We do not make money from shipping and only pass along the actual shipping cost charged by the carrier.
If the shipping cost we quoted or provided is less than the actual amount charged by the carrier, we reserve the right to not honor the sale at that shipping price and may cancel the order if necessary. However, before any order is canceled, you will be given the opportunity to pay any additional shipping charges if you choose to do so.
Warranty Information
ROLAIR Manufacturer Warranty
Warranty repairs must be completed by an authorized ROLAIR service center.
Associate Engineering Corporation warrants ROLAIR air compressors against defects in materials and workmanship for 12 months from the original retail purchase date or 18 months from the date of manufacture, whichever occurs first.
If a covered defect is reported within the applicable warranty period, the purchaser must ship the compressor to ROLAIR’s facility with transportation prepaid. ROLAIR will correct the defect through an appropriate repair or, at its discretion, provide a replacement part from its facility.
Associate Engineering Corporation is not responsible for unauthorized repairs, replacement work, compressor adjustments or labor performed by the purchaser.
This manufacturer warranty replaces other expressed, implied or statutory warranties, including warranties of merchantability or fitness for a particular purpose. No other person or company is authorized to assume additional obligations or liabilities on behalf of Associate Engineering Corporation.
Associate Engineering Corporation is not responsible for consequential, incidental or special damages, or for the improper selection of a compressor for a particular application.
Warranty Documents
