ROLAIR H2160K17 / V2160K17 2 HP 60 Gallon Single-Stage Single-Phase Stationary Air Compressor
ROLAIR H2160K17 / V2160K17 2 HP 60 Gallon Single-Stage Single-Phase Stationary Air Compressor
BRAND: ROLAIR
SKU: H2160K17
Ships From Manufacturer
Couldn't load pickup availability
ROLAIR H2160K17 / V2160K17 2 HP 60 Gallon Single-Stage Single-Phase Stationary Air Compressor
MODELS: H2160K17, V2160K17
The ROLAIR H2160K17 / V2160K17 2 HP 60 Gallon Single-Stage Single-Phase Stationary Air Compressor is a belt-driven stationary electric compressor designed for professional shop and industrial compressed-air applications. It delivers 8.4 @ 100 PSI.
Its single-stage splash-lubricated pump uses cast-iron cylinders, an aluminum head and crankcase for heat dissipation, ball bearings, bearing inserts, reed valves and an oil sight gauge. Standard equipment includes automatic unloading, a pressure gauge, an ASME-approved safety relief valve, V-belt drive, replaceable intake filter/silencer and an enclosed steel belt guard.
Important Notes:
- These models are supplied without a magnetic starter.
- If required, a properly sized magnetic starter must be supplied and installed by a qualified electrician according to the motor nameplate and applicable electrical codes.
- Use only air-compressor oil of the correct type and viscosity. Do not use detergent motor oil. ROLAIR recommends genuine ROLAIR compressor oil.
- The air compressor pictured is a stock photo from the manufacturer's website and is not the actual air compressor listed. It is a close representation of the model.
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- Horsepower: 2 HP
- Compressor Stage: Single-Stage
- Power Type: Electric
- Phase: Single-Phase
- CFM Delivered: 8.4 @ 100 PSI
- Pump Speed: 1000 RPM
- Motor Speed: 1725 RPM
- Lubrication: Splash lubricated

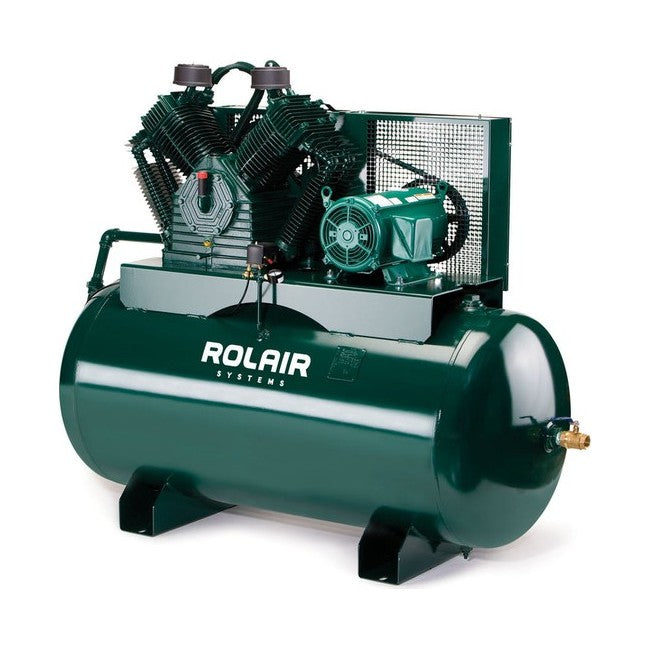

H2160K17 - 60 Gallon Horizontal - 115/230V
- Voltage: 115/230V
- Tank Configuration: 60 Gallons, Horizontal
- Dimensions: 52" L x 20" W x 41" H
- Approximate Shipping Weight: 285 lb.

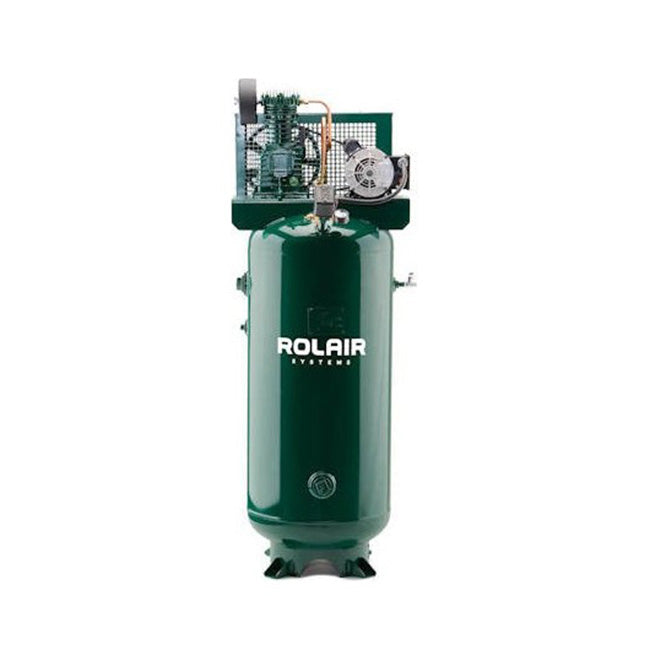

V2160K17 - 60 Gallon Vertical - 115/230V
- Voltage: 115/230V
- Tank Configuration: 60 Gallons, Vertical
- Dimensions: 24" L x 20" W x 68" H
- Approximate Shipping Weight: 265 lb.
ROLAIR K17 Pump
Pump Specifications
- Pump Model: K17
- Maximum Pressure: 150 PSI
- Number of Cylinders: 2
- Bore: 2.52 in.
- Stroke: 1.97 in.
- Flywheel Diameter: 11.00 in.
- V-Belts: 1-A
- Intake: 0.50 in.
- Discharge: 0.50 in.
- Oil Capacity: 34 oz.
Standard Equipment
- 11.02-inch aluminum flywheel
- Crankcase breather
- Oil sight glass
- Filter
