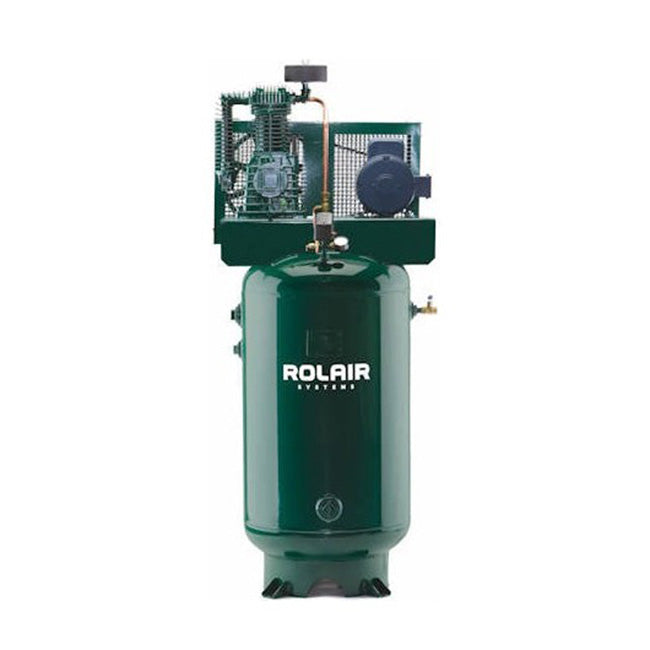

ROLAIR V5160PT03X 5 HP 60 Gallon Vertical Single-Stage Single-Phase Stationary Air Compressor
ROLAIR V5160PT03X 5 HP 60 Gallon Vertical Single-Stage Single-Phase Stationary Air Compressor
BRAND: ROLAIR
SKU: V5160PT03XB
Ships From Manufacturer
Couldn't load pickup availability
ROLAIR V5160PT03X 5 HP 60 Gallon Vertical Single-Stage Single-Phase Stationary Air Compressor
MODELS: V5160PT03X
The ROLAIR V5160PT03X 5 HP 60 Gallon Vertical Single-Stage Single-Phase Stationary Air Compressor is a belt-driven stationary electric compressor designed for professional shop and industrial compressed-air applications. It delivers 16.0 @ 100 PSI.
Its single-stage splash-lubricated pump uses cast-iron cylinders, an aluminum head and crankcase for heat dissipation, ball bearings, bearing inserts, reed valves and an oil sight gauge. Standard equipment includes automatic unloading, a pressure gauge, an ASME-approved safety relief valve, V-belt drive, replaceable intake filter/silencer and an enclosed steel belt guard.
Important Notes:
- These models are supplied without a magnetic starter.
- If required, a properly sized magnetic starter must be supplied and installed by a qualified electrician according to the motor nameplate and applicable electrical codes.
- ROLAIR states that no factory optional equipment is available for the V5160PT03X configuration.
- Use only air-compressor oil of the correct type and viscosity. Do not use detergent motor oil. ROLAIR recommends genuine ROLAIR compressor oil.
- The air compressor pictured is a stock photo from the manufacturer's website and is not the actual air compressor listed. It is a close representation of the model.
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- Horsepower: 5 HP
- Compressor Stage: Single-Stage
- Power Type: Electric
- Phase: Single-Phase
- CFM Delivered: 16.0 @ 100 PSI
- Pump Speed: 1200 RPM
- Motor Speed: 3450 RPM
- Lubrication: Splash lubricated
V5160PT03X - 60 Gallon Vertical - 230V
- Voltage: 230V
- Tank Configuration: 60 Gallons, Vertical
- Dimensions: 24" L x 20" W x 70" H
- Approximate Shipping Weight: 298 lb.
ROLAIR PT03A Pump
Hover to enlarge or select the image to view it full size.
Pump Specifications
- Pump Model: PT03A
- Maximum Pressure: 150 PSI
- Number of Cylinders: 3
- Bore: 2.56 in. x 3
- Stroke: 1.89 in.
- V-Belts: Not required
- Intake: 0.50 in.
- Discharge: 0.50 in.
- Oil Capacity: 24 oz.
Standard Equipment
- 10.63-inch cast-iron flywheel
- Crankcase breather
- Oil sight glass
- Three filters
