RTi BRAD-BD2 Breathing Air System with CO Monitor for 2–6 Operators

Description

Reading Technologies BRAD-BD2 Breathing Air System with CO Monitor for 2–6 Operators

Part Number: BRAD-BD2

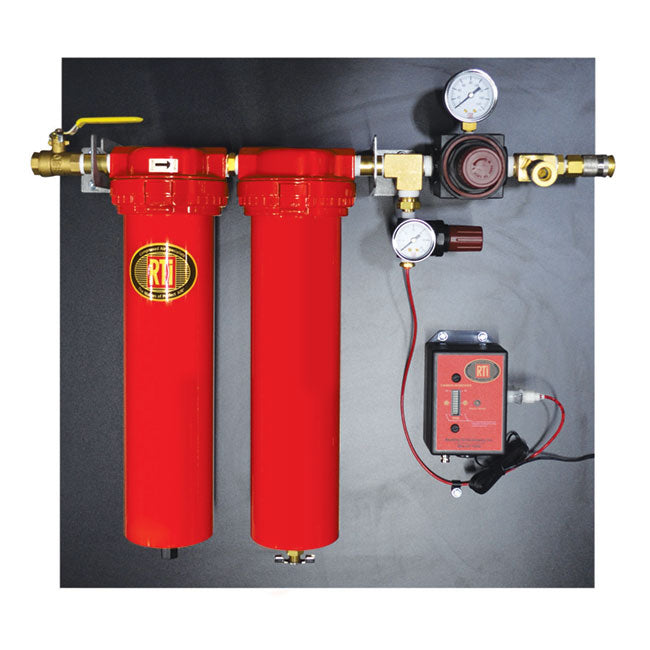

The RTi BRAD-BD2 Breathing Air System is designed for 2 or more painters, delivering Grade “D” breathable air with integrated CO monitoring. This system features a deep-bed activated carbon pre-filter, high-efficiency 0.01 micron final filtration, dual regulated outlets, and a CO monitor preset for 10 PPM alarms. It includes a heavy-duty high-flow regulator, wall-mount board, and high-flow quick disconnects for seamless setup and use in demanding shop environments.

Included CO monitor (BRAD-CM3) features a bar graph display, calibration magnet, RF delay for false alarm elimination, and low-pressure alarm.

Replacement Elements

• First Stage: DE362C
• Second Stage: 3C-151

Specifications

• Part Number: BRAD-BD2
• Grade “D” breathable air system
• 2–6 operator capacity
• Dual 1/2 in. outlets with 1/4 in. high-flow quick disconnects
• Deep bed activated carbon pre-filter (removes hydrocarbons to 0.003 PPM)
• 0.01 micron final filter with 99.9999+% efficiency
• Heavy-duty 1/2 in. regulator with FDA lubricant
• CO Monitor preset to 10 PPM with 110V AC plug and bar graph display
• Low air sample rate with low pressure alarm (bypass capable)
• Mounts to 1/2 in. board for easy installation
• Max Flow Rate: 150 SCFM
• Max Pressure: 150 PSI
• Voltage: 115V AC
• Weight: Not listed
