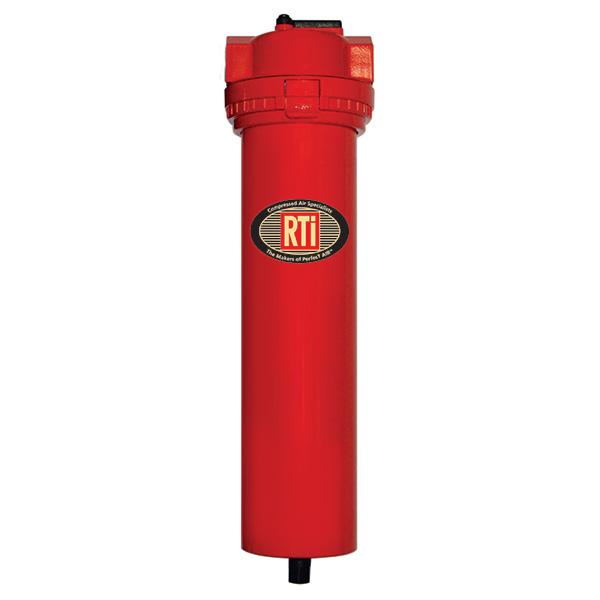

RTi C106 Coalescer, 0.01 Micron, 3/4" Inlet/Outlet
RTi C106 Coalescer, 0.01 Micron, 3/4" Inlet/Outlet
Ships within (1 - 3 Business Days)
SKU: C106
Couldn't load pickup availability
Description
Reading Technologies RTi C106 Air Compressor Coalescers, 0.01 Micron, 3/4 in. Inlet/Outlet
Part Number: C106
Reading Technologies Inc C106 Coalescer 3/4 in. – The best filter product on the market for delivering cleaner compressed air with no oil in your applications. Simple design requires no tools for maintenance and allows easy service of elements. This product features extremely long element life and removes water, dirt, oil, and compressor oils from the air.
Features:
- Equipped with two automatic drains
- Automatic drains with manual override
- Quick disconnect clamp ring design
- Spin-on/spin-off elements
- Heavy-duty metal bowl construction
- 0.01 micron @ 99.99998% oil removal efficiency
- Differential pressure indicator
- Mainline filtration systems
- After filter for refrigerated dryer
- After filter for desiccant dryer
- Pre-filter for desiccant dryer
Perfect for paint booths and prep stations. Removes dirt, water, and oil. Patented "Inverse Flow" design. Patented activated carbon first stage removes oil to 0.003 ppm. Second stage final filtration to 0.01 micron at 99.99998% efficiency.
An extremely long element life and easy, tool-free servicing make Reading Technologies Stealth filters an optimum choice for your body shop and MADE in USA!
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications
Part Number: C106
- Inlet Size: 3/4 in. NPT
- Inlet Attachment: Female threads
- Outlet Size: 3/4 in. NPT
- Outlet Attachment: Female threads
- Maximum Pressure: 150 PSIG
- Maximum Flow: 90 SCFM
- Bowl Guard: No
- Sight Glass: No
- Automatic Overnight Drain: Yes
TP Tools Tip: For best results, place water filters as far away from the compressor as possible (at least 25 ft). This allows the air to cool and condense so water can be removed efficiently.
Applications:
- Air Tools, Sand Blasting, Sanding Impacts, Buffing
- Ideal for Mechanical Section of Shop
