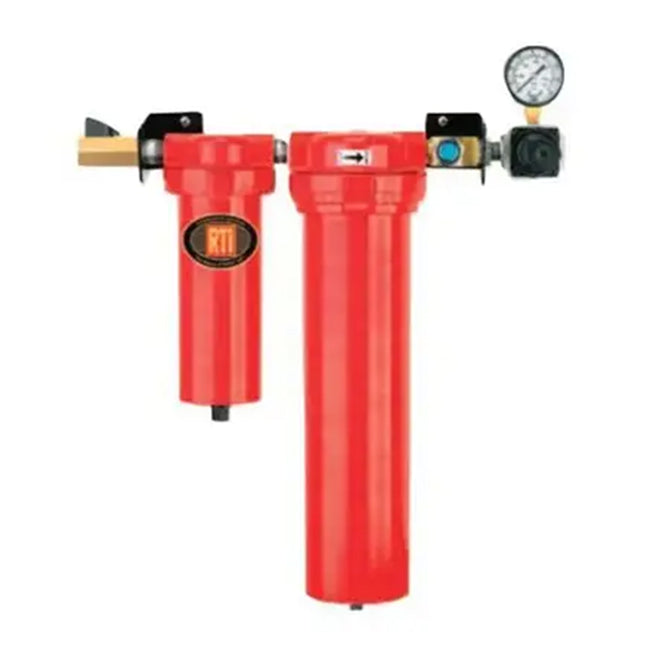

Reading Technologies EH4000-3R Eliminator II Desiccant Dryer, 1/2 in. Inlet, 3/8 in. Regulator With Gauge
Part Number: EH4000-3R
The RTi EH4000-3R Eliminator II is a two-stage desiccant dryer engineered to deliver dry, oil-free compressed air for critical applications like paint booths and prep stations. Featuring Inverse-Flow® technology, this unit uses an activated carbon pre-filter and a desiccant second stage for efficient moisture and oil vapor removal down to a -40°F dew point. The EH4000-3R includes a 3/8 in. high-flow regulator and gauge assembly, auto drain, and a 1/2 in. shut-off valve on the inlet.
Tool-free maintenance, quick disconnect clamp ring design, and a true air stream moisture indicator ensure ease of use and reliable performance. Constructed with non-corrosive aluminum bowls and Zemag heads, the unit is built for durability and longevity in high-demand environments.
Applications:
- Paint Booths
- Lacquer Spraying
- Air Tools, Sand Blasting, Sanding Impacts, Buffing
- Ideal for Mechanical Section of Shop
An extremely long element life and easy, tool-free servicing make Reading Technologies Stealth filters an optimum choice for your body shop and MADE in USA!
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- Part Number: EH4000-3R
- Technology: Inverse-Flow® with 3-1/2 in. filter depth
- Filtration Stages: Activated carbon (1st), Desiccant (2nd)
- Regulator Type: 3/8 in. high-flow regulator with gauge
- Inlet Size: 1/2 in. NPT
- Outlet Size: 3/8 in. NPT
- Shut-Off Valve: 1/2 in.
- Moisture Indicator: True inline visual paper-type
- Max. Air Pressure: 150 PSIG
- Max. Operating Temperature: 125°F
- Flow Capacity: Up to 25 SCFM
- Replacement Elements: 1st Stage: 4P-060, 2nd Stage: DE401
- Includes: Auto drain, regulator, gauge, shut-off valve
TP Tools Tip: For best results, place water filters at least 25 ft. away from the compressor to allow air to cool and condense, ensuring maximum water removal.
