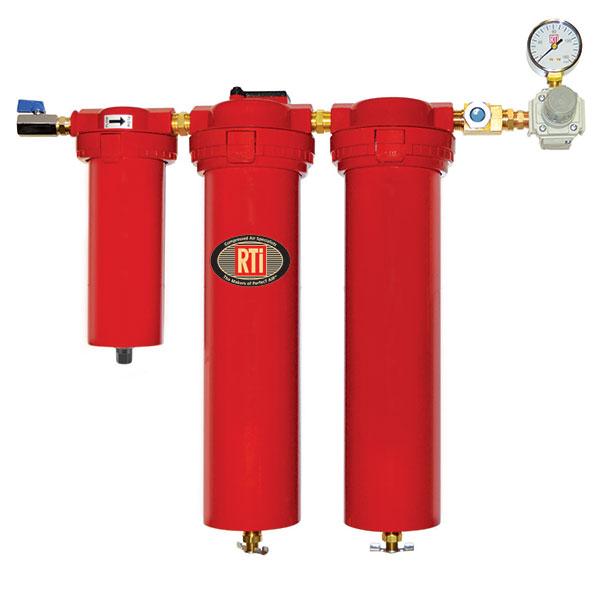

RTi EH7000-3R Eliminator v2.5- 1/2inch Desicant Dryer w/ Indicator, Regulator & Gauge
RTi EH7000-3R Eliminator v2.5- 1/2inch Desicant Dryer w/ Indicator, Regulator & Gauge
Ships within (1 - 3 Business Days)
SKU: EH7000-3R
Couldn't load pickup availability
Description
Reading Technologies EH7000-3R Eliminator v2.5 – 1/2 in. 3-Stage Desiccant Dryer with Indicator, Regulator & Gauge
Part Number: EH7000-3R
Perfect for body shops with high levels of contamination. Suggested use: in prep stations and paint booths to remove water, dirt, oil, and water vapor.
Features:
- Designed to provide continuous dry, oil-free air to -40ºF dew point
- 3-in-1 system: activated carbon pre-filter, built-in final filter, and desiccant cartridge with no dust migration
- Largest 0.01 micron coalescer on the market
- Tool-less spin-on/spin-off elements for easy maintenance
- Includes two PB-004 brackets for easy mounting
- Inverse Flow Technology with low pressure drop design
- High-flow 3/8 in. NPT relieving regulator
- Automatic drain on first stage; manual petcock drains on second and third stages
- Replacement Elements:
- 1st Stage: 4P-060
- 2nd Stage: 3C-090
- 3rd Stage: DE401
NOTE: Remember clean, dry, compressed air is as important to your overall finish as paint brand, painter experience, or spray gun. To achieve clean, dry air order your Eliminator II Desiccant Dryer today.
Perfect for paint booths and prep stations. Removes dirt, water, and oil. Patented "Inverse Flow" design. Patented activated carbon first stage removes oil to 0.003 ppm. Second stage final filtration to 0.01 micron at 99.99998% efficiency.
An extremely long element life and easy, tool-free servicing make Reading Technologies Stealth filters an optimum choice for your body shop and MADE in USA!
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications
Part Number: EH7000-3R
- Dryer Design: Manual, desiccant
- Recommended Temperature: 100ºF
- Maximum Pressure: 150 PSIG
- Dryer Capacity: -40ºF dew point
- Filter Capacity: 0.01 micron and larger, activated carbon absorption to 0.003 ppm
- Flow Capacity: 30 SCFM @ 100 PSI
- Differential Pressure: <5.0 PSID at rated flow
- Dimensions: 17 in. H x 16 in. W x 4.75 in. D
- Weight: 20 lbs
Port Size – 1/2 in. Inlet / 1/4 in. Outlet
Application: 1 spray gun
1st Stage Element: 4P-060
2nd Stage Element: DE-401
Applications:
- Paint Booths
- Lacquer Spraying
- Air Tools, Sand Blasting, Sanding Impacts, Buffing
- Ideal for Mechanical Section of Shop
TP Tools Tip: For best results, place water filters as far away from the compressor as possible (at least 25 ft). This allows the air to cool and condense so water can be removed efficiently.
