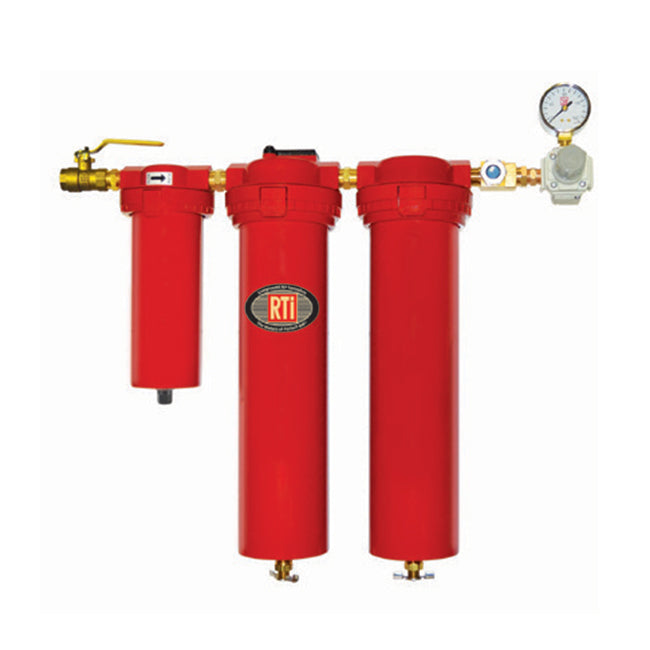

RTi EH7000-4R 3-Stage Desiccant Dryer with 1/2 in. Inlet and Regulator
RTi EH7000-4R 3-Stage Desiccant Dryer with 1/2 in. Inlet and Regulator
Ships within (1 - 3 Business Days)
SKU: EH7000-4R
Couldn't load pickup availability
Description
Reading Technologies EH7000-4R 3-Stage Desiccant Dryer with 1/2 in. Inlet and Regulator
Part Number: EH7000-4R
The EH7000-4R from Reading Technologies is a high-performance 3-stage desiccant dryer designed for prep stations and paint booths requiring continuous, dry, oil-free air. Engineered with patented Inverse-Flow® technology and a tool-less spin-on/spin-off element design, this dryer offers efficient air purification down to -40°F dew point and 0.01 micron filtration. With a high-flow 1/2 in. relieving regulator, dual mounting brackets, and automatic and manual drains for each stage, it ensures reliable operation and minimal downtime in demanding environments.
Applications:
- Paint Booths
- Prep Stations
- Air Tools
- Body Shop Air Supply Systems
An extremely long element life and easy, tool-free servicing make Reading Technologies Stealth filters an optimum choice for your body shop and MADE in USA!
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications
- Part Number: EH7000-4R
- Dryer Design: Manual, Desiccant
- Recommended Operating Temp: 100°F
- Max. Pressure: 150 PSIG
- Dew Point Rating: -40°F
- Filtration: 0.01 micron and larger
- Oil Vapor Absorption: To 0.003 ppm
- Flow Capacity: 30 SCFM at 100 PSI
- Max Differential Pressure: <5.0 PSID at rated flow
- Inlet/Outlet Size: 1/2 in. NPT
- Regulator Type: 1/2 in. relieving regulator with gauge
- Drains: Automatic (1st stage), manual petcock (2nd and 3rd stages)
- Height: 17 in.
- Width: 16 in.
- Depth: 4.75 in.
- Weight: 20 lbs.
- 1st Stage Element: 4P-060
- 2nd Stage Element: 3C-090
- 3rd Stage Element: DE401
