RTi EX204-B Eliminex and Coalescer 1/2" Filter Combo
RTi EX204-B Eliminex and Coalescer 1/2" Filter Combo
BRAND: RTi
SKU: EX204-B
In Stock
Couldn't load pickup availability

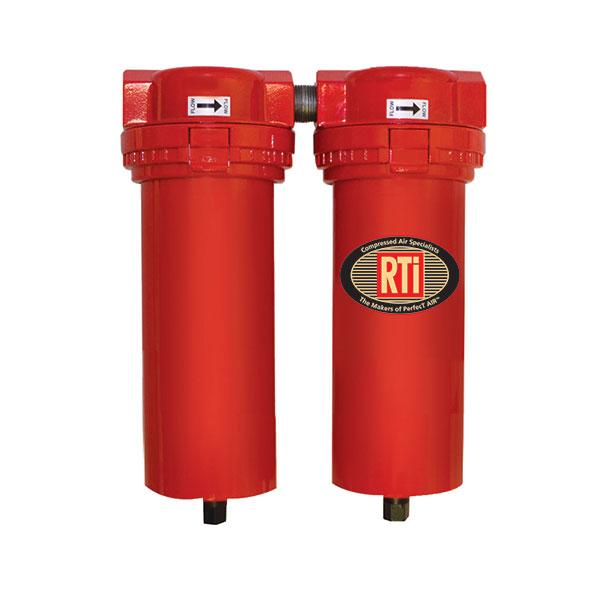

Reading Technologies EX204-B Eliminex / Coalescer Combo Filter 2 Stage, 0.01 Micron, 1/2 in. Inlet/Outlet With Wall Mount Bracket
Part Number: EX204-B
1/2 in. inlet and outlet (model dependent), 60 SCFM flow rate. Patented Inverse Flow™ design to 3.0 micron. Innovative clamp ring design requires no tools. Includes filter change indicator (2nd stage), Grade 2 coalescer to 0.01 micron, automatic brass drains with manual override, and 1/2 in. NPT drain port.
Features:
- Water, oil, and dirt filtration
- Activated carbon pre-filter
- 0.01 micron oil removal second stage
- 3/8 in. regulator with gauge
- Clamp ring design allows easy service
Perfect for paint booths and prep stations. Removes dirt, water, and oil. Patented "Inverse Flow" design. Patented activated carbon first stage removes oil to 0.003 ppm. Second stage final filtration to 0.01 micron at 99.99998% efficiency.
An extremely long element life and easy, tool-free servicing make Reading Technologies Stealth filters an optimum choice for your body shop and MADE in USA!
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Part Number: EX204-B
- RTi EX204-B Eliminex and Coalescer Combo, 1/2 in. inlet/outlet
- Patented Inverse Flow™ design to 3.0 micron
- Innovative clamp ring design – no tools needed
- Filter change indicator (2nd stage)
- Grade 2 coalescer to 0.01 micron
- Automatic brass drains with manual override
- 1/2 in. NPT drain port
- Designed for particle removal
- Bowl capacity: 4.6 gal
- 1st stage element: 1P-060
- 2nd stage element: 3C-060
TP Tools Tip: For best results, place water filters as far away from the compressor as possible (at least 25 ft). This allows the air to cool and condense so water can be removed efficiently.
Applications:
- Air Tools, Sand Blasting, Sanding Impacts, Buffing
- Ideal for Mechanical Section of Shop
