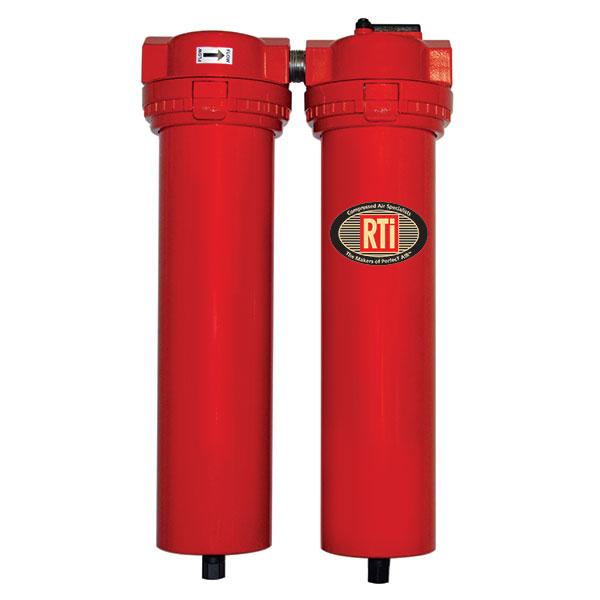

RTi EX206 Eliminex & Coalescer Filtration Combo 3/4inch, 90 scfm
RTi EX206 Eliminex & Coalescer Filtration Combo 3/4inch, 90 scfm
Ships within (1 - 3 Business Days)
SKU: EX206
Couldn't load pickup availability
Description
Reading Technologies EX206 Eliminex & Coalescer Filtration Combo, 90 SCFM, 0.01 Micron, 3/4 in. Inlet/Outlet
Part Number: EX206
3/4 in. or 1 in. inlet and outlet (model dependent), 90 SCFM flow rate. Patented Inverse Flow™ design to 3.0 micron. Innovative clamp ring design requires no tools. Includes filter change indicator (2nd stage), Grade 2 coalescer to 0.01 micron, automatic brass drains with manual override, and 1/2 in. NPT drain port.
Benefits:
- Cleaner compressed air with no oil to your applications
- Simple design requires no tools for maintenance
- Easy service of elements
- Extremely long element life
- Removes water, dirt, oil, and compressor oils from air
- Best filter product on the market
Perfect for paint booths and prep stations. Removes dirt, water, and oil. Patented "Inverse Flow" design. Patented activated carbon first stage removes oil to 0.003 ppm. Second stage final filtration to 0.01 micron at 99.99998% efficiency.
An extremely long element life and easy, tool-free servicing make Reading Technologies Stealth filters an optimum choice for your body shop and MADE in USA!
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications
Part Number: EX206
- 3/4 in. inlet and outlet (model dependent)
- 60, 90, 150 SCFM flow rates
- Patented Inverse Flow™ design to 3.0 micron
- Innovative clamp ring design – no tools needed
- Filter change indicator (2nd stage)
- Grade 2 coalescer to 0.01 micron
- Automatic brass drains with manual override
- 1/2 in. NPT drain port
TP Tools Tip: For best results, place water filters as far away from the compressor as possible (at least 25 ft). This allows the air to cool and condense so water can be removed efficiently.
Applications:
- Air Tools, Sand Blasting, Sanding Impacts, Buffing
- Ideal for Mechanical Section of Shop
Documents
Shipping
This item Qualifies for FREE SHIPPING it only applies to destinations within the 48 contiguous United States. Alaska, Hawaii, and any/all US territories and international orders are excluded.
This Free Shipping service is the slowest cheapest way of shipping and is not time sensitive , However you may upgraded to a faster service at check-out for an additional price which is calculated upon check-out according to Zip and State.
*Note:
If you are having trouble checking out or need additional help please call us at (321)-423-5290 so we can give you an updated shipping quote. (321)-423-5290
OR
If you have a special shipping need you need arranged please email
or call us.
Please Review our Terms of Service, Shipping Policy, Return & Refund, Policy Pages.
Warranty Information
