RTi PERF-50 Paint Air System Package


Air Compressor Line Filters

RTi PERF-50 Paint Air System Package

  • VENDOR:-   RTi
  • SKU#   PERF-50
In Stock
  • $2,695.84
    Unit price per

- +
Only 0 left!

Description

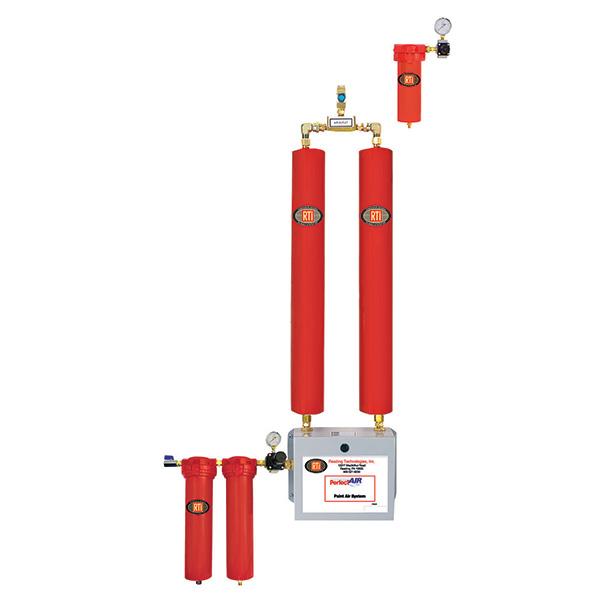

Reading Technologies PERF-50 Paint Air System Package with Regulator & Gauge.

PERF-50 Paint Air System Package- PERF-50 System includes 3/4” Regulator w/ Gauge with (2) stage Prefilter with Auto drain 1st stage, ARAD-50 Regenerative Desiccant Dryer with Moisture Indicator, After Filter with 1/2” Regulator w/ Gauge For (2) gun spraying systems with up to 50 scfm delivered to your guns.


Consistant -40°F Dew Point to the Gun Preferred by Paint MFR’s Delivers Perfectly Clean Dry Air for “Flawless Finishes Every Time” For All Spray Guns, including HVLP Complete System Packages,“A to Z” No Upstream Dryer Required No Downtime for Desiccant Maintenance Faster Cure Times - Increased Production Quiet Operation EasyWall Mount Design Non-Corrosive Aluminum Towers Reading


Features:
  • Arad-50 Regenerative Desiccant Dryer
  • Perf-50-PF Pre-Filter Assy
  • NAR5000-N06 regulator
  • ½" ball valve inlet
  • Perf-50-AF After Filter
  • NAR4000-N04 regulator
  • Outlet drain hose kit and Pre-Filter
  • Support brackets
  • 50 scfm at 100 PSI for paint gun air
  • Filters to 99.99998% at 0.01 micron
  • Dryer capacity: -40°F dew point
  • ½" NPT inlet
  • On/off valve on inlet

Optional accessories:

  • (2) HVHA-35 hose assembly
  • (2) MR-1 paint gun regulator



NOTE: Remember Clean, Dry, Compressed Air is as important to your overall finish as paint brand, painter experience, or the spray gun. To achieve clean, dry air order your Eliminator II Desiccant Dryer today.

Perfect for paint booths and prep stations. Removes dirt, water and oil.
Patented "Inverse Flow™"design. Patented activated carbon first stage removes oil to 0.003 ppm. 2nd stage final filtration to 0.01 micron at 99.99998% efficiency.

An extremely long element life and easy, tool-free servicing make Reading Technologies Stealth filters an optimum choice for your body shop and MADE in USA!

WARNING: This product may expose you to chemicals including lead which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specifications

Part Number: PERF-50
  • 1st Stage Element - 3P-090
  • 2nd Stage Element - 3C-090/3C-0602
  • Arad-50 Regenerative Desiccant Dryer
  • Perf-50-PF Pre-Filter Assy
  • NAR5000-N06 regulator
  • ½" ball valve inlet
  • Perf-50-AF After Filter
  • NAR4000-N04 regulator
  • Outlet drain hose kit and Pre-Filter
  • Support brackets
  • 50 scfm at 100 PSI for paint gun air
  • Filters to 99.99998% at 0.01 micron
  • Dryer capacity: -40°F dew point
  • ½" NPT inlet
  • On/off valve on inlet



Applications:
  • Paint Booths
  • Lacquer Spraying
  • Air Tools, Sand Blasting, Sanding Impacts, Buffing
  • Ideal for Mechanical Section of Shop


 TP Tools Tip: For best results, place water filters as far away from the compressor as possible (at least 25 ft). This allows the air to cool and condense so water can be removed efficiently.

Shipping

This is a Plus Shipping item which only can be shipped to destinations within the 48 contiguous United States. Alaska, Hawaii, and any/all US territories and international orders are excluded.

Price will be calculated at check-out.

UPS Shipping rates are calculated based on actual and dimensional weights. To find your rate, add the item to your cart and then enter your zip code into the right hand side of the shopping cart. If your total UPS order is over 120 lbs, the system will not calculate charges.

*NoteIf you are having trouble checking out, please call us at  (706) 478-0072.

OR

If you have a special shipping request you need arranged, please email
 or call us.

Please Review our Terms of Service, Shipping Policy, Return & Refund, Policy Pages.

Documents

Flyer RTi PERF-50 Paint Air System Package
