Grease Pumps & Kits

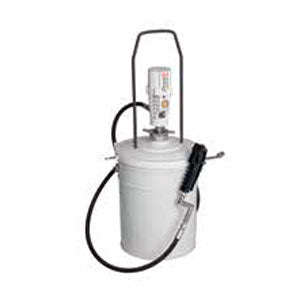

Samson 301 101 - Grease Pump 55:1 35lb Pail w/ 10 ft. Hose
- VENDOR:- Samson
- SKU# SPM301101
Description
Samson 301 101 - Grease Pump 55:1 35lb Pail w/ 10 ft. Hose
Part No. 301 101
Light weight and effective double acting high pressure air operated pumps specially designed for use in mobile and portable greasing units.
Pumps are available with three different suction tube lengths, to fit all commercial grease drums: 35 lb (20 kg), 120 lb (50 kg) and 400 lb (185 kg).
They include a height adjustable 2" NPTM bung adaptor.

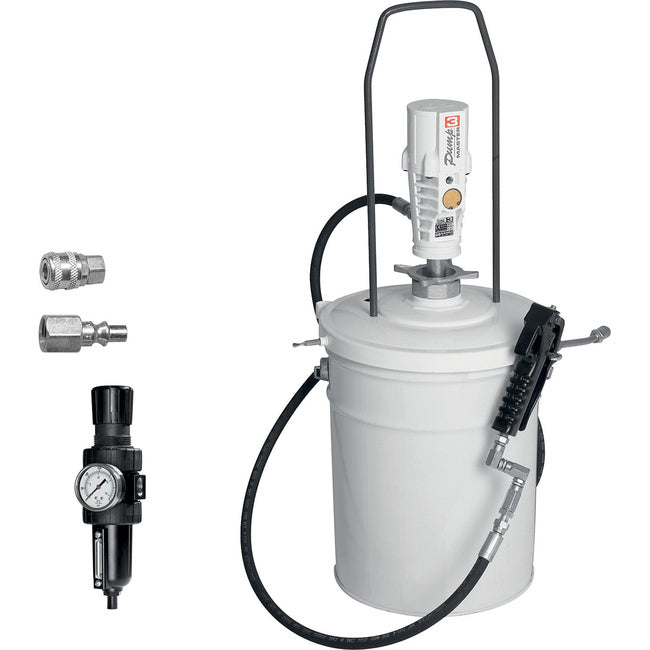

Package includes:
- PumpMaster 3 - 55:1
- pail cover
- Follower plate
- Delivery hose
- Grease handle
- Grease handle swivel
- 1/4" quick air coupler
- 1/4" quick air nipple
- 1/4" mini filter regulator combo
- 1/4" pump to FR combo connection
- Carrying handle
Specifications
- Pump ratio 55:1
- Air pressure operating range 20 to 140 psi (1,5 to 10 bar)
- Air consumption (1) 5.8 scfm (165 NL/min)
- Maximum fluid outlet pressure 7,700 psi (550 bar)
- Air motor diameter 2 3/4" (70 mm)
- Air motor stroke 1 1/2" (35 mm)
- Delivery at 110 cpm 0.7 lb/min (300 g/min)
- Maximum free flow delivery (2) 1.2 lb/min (540 g/min)
- Air inlet 1/4" NPTF
- Fluid outlet 1/4" NPTF
- Wetted and seal materials Steel / NBR / PTFE
- Noise level (3) 85 dB
- Manual 840 803
Shipping Weight: 31 lbs
Dimensions: 39 X 6 X 18 inches
