Samson 348 120 - PM4 - 5:1 55 gal drum Oil Pump - Tire Equipment Supply

Financing From Low As $25 per Month
- Instant Approval - No hard credit pull - $500-$20,000



Oil Pumps & Kits

Samson 348 120 - PM4 - 5:1 55 gal drum Oil Pump

  • VENDOR:-   Samson
  • SKU#   SPM348120
In Stock
  • $933.30

  • - +
    Only 0 left!




    Important Shipping Information:-
    • Orders received on Fridays after 11am EST will be processed the next business day
    All orders shipped to a RESIDENTIAL ADDRESS will be subject to Additional charges from all carriers at this time.
    What is LIMITED ACCESS - Commercial / Non-Commercial / Farms Click Here to Read More



    Description

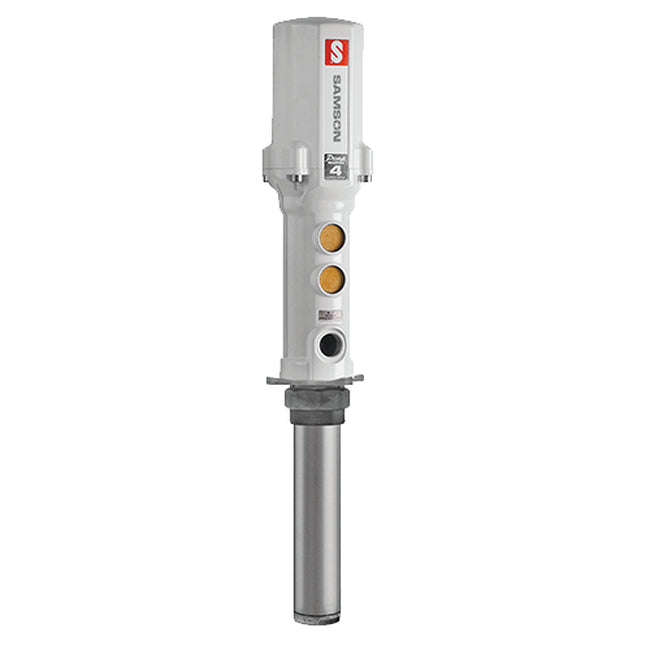

    Samson 348 120 - PM4 - 5:1 55 gal drum Oil Pump

    Part No.  348 120

    55 gal drum bung mounted with bung adaptor

    Double acting air operated medium pressure pumps for dispensing lubricants in medium to large size installations, that include multiple outlets with simultaneous operation. Pumps include height adjustable bung adaptor 2" NPTM for drum and tank bung mounting. Built in port for optional (PN 609 007) pressure relief valve.

    Fluids Handled

    • Synthetic and mineral based oil
    • Transmission fluid
    • Hydraulic oil
    • Gear lube
    WARNING: This product may expose you to chemicals including lead which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

    Specifications

    Air pressure operating range 20 to 140 psi (1,5 - 10 bar)
    Air consumption (1) 14 scfm (400 NL/min)
    Maximum fluid outlet pressure 700 psi (50 bar)
    Air motor diameter 3 1/2" (88 mm)
    Air motor effective diameter 2 1/2" (60 mm)
    Air motor stroke 4" (100 mm)
    Delivery at 125 cpm 2.7 US gpm (10 l/min)
    Maximum free flow delivery (2) 6.6 US gpm (25 l/min)
    Air inlet 3/8" NPTF
    Fluid inlet (stub pump only) 1" NPTF
    Fluid outlet 3/4" NPTF
    Wetted and seal materials Aluminum / Steel / Polyurethane / NBR / PTFE
    Noise level (3) 80 dB
    Manual 834 811

    Shipping Weight: 20 lbs

    Dimensions: 70 X 7 X 5 inches

    Shipping

    This is a Plus Shipping item which only can be shipped to destinations within the 48 contiguous United States. Alaska, Hawaii, and any/all US territories and international orders are excluded.

    Price will be calculated at check-out.

    UPS Shipping rates are calculated based on actual and dimensional weights. To find your rate, add the item to your cart and then enter your zip code into the right hand side of the shopping cart. If your total UPS order is over 120 lbs, the system will not calculate charges.

    *NoteIf you are having trouble checking out, please call us at  (706) 478-0072.
