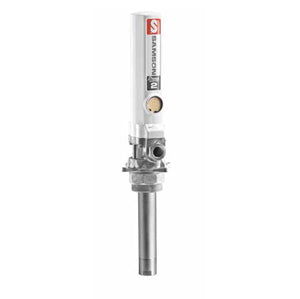

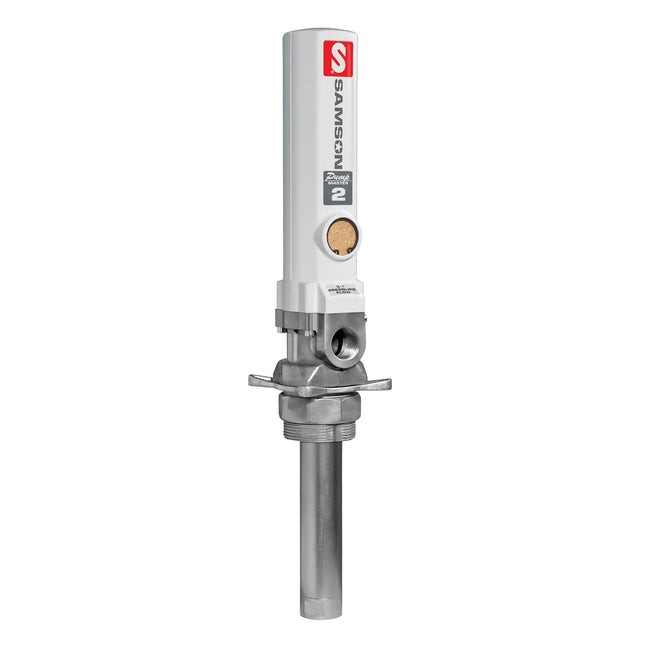

Samson 353 120 - 3:1 Ratio Stub Pump only with Bung Adapter

• Air pressure operating range 20 to 140 psi (1,5 - 10 bar)
• Air consumption (1) 6.4 scfm (180 NL/min)
• Maximum fluid outlet pressure 420 psi (30 bar)
• Air motor diameter 2" (51 mm)
• Air motor effective diameter 1 1/2" (35 mm)
• Air motor stroke 3" (75 mm)
• Delivery at 200 cpm 2.7 US gpm (10 l/min)
• Maximum free flow delivery (2) 9.3 US gpm (35 l/min)
• Air inlet 1/4" NPTF
• Fluid inlet (stub pump only) 3/4" NPTF
• Fluid outlet 1/2" NPTF
• Wetted and seal materials Aluminum / Steel / NBR / PTFE
• Noise level (3) 80 dB
• Manual 835 809

Shipping Weight: 6lbs

Dimensions: 21 X 4 X 4 inches

Tech Sheet

Service Manual
