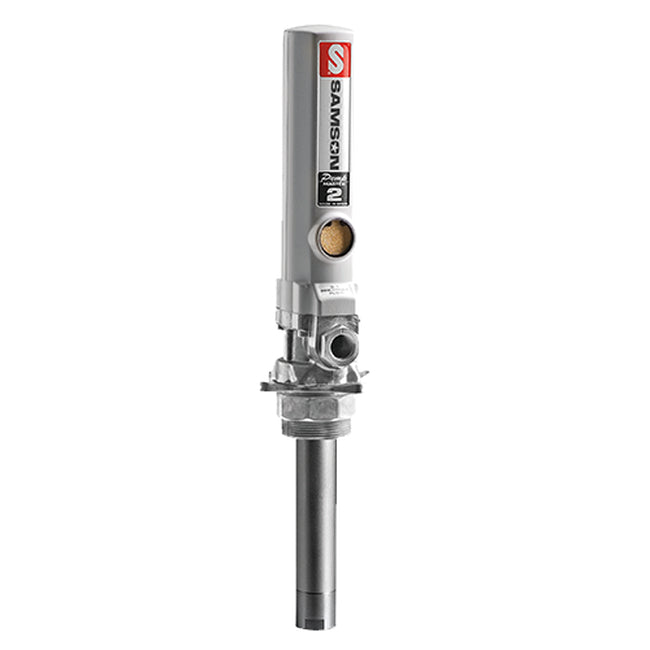

Samson 358 120 - PM2 - 3:1 16 gal drum pump

• Pump Pressure Ratio 3:1
• Continuous Duty Flow Rate 2.7 gpm (10 l/min)
• Maximum Free Flow Rat 9.3 gpm (35 l/min)
• Air Pressure Operating Range 20-140 psi (1.5-10 bar)
• Maximum Outlet Pressure 420 psi (30 bar)
• Air Motor Effective Diameter 1 1/2" (35 mm)
• Air Motor Stroke 3" (75 mm)
• Air Consumption 6.4 scfm (180 NL/min)
• Air Inlet 1/4" NPTF
• Fluid Inlet 1" NPTF
• Fluid Outlet 3/4" NPTF
• Wetted Materials Aluminium, Steel, NBR, PTFE
• Noise Level 80 dB
• Application Stub pump, 16 gal drum pump
• Simultaneous Dispense Points 1
• Max. Line Length 200' (60 m)
• Pump Description Utility Medium Pressure

Shipping Weight: 9 lbs

Dimensions: 53 X 4 X 4 inches
