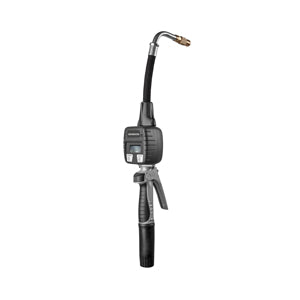

Samson 365 534 - Oil Control Digital Valve Flex 90° 1/4" Turn No-drip Tip
Samson 365 534 - Oil Control Digital Valve Flex 90° 1/4" Turn No-drip Tip
Ships within (1 - 3 Business Days)
SKU: 365534
Couldn't load pickup availability
Description
Samson 365 534 - Oil Control Digital Valve Flex 90° 1/4" Turn No-drip Tip
Part No. 365 534
SAMSON electronic-metered control valves have been specifically designed to measure and dispense volumes of all kind of synthetic and mineral oils and to lead the competition in technology and innovation. SAMSON manufactures a range of oval-gear electronic meters, which can be programmed to register in either quarts, pints, gallons or liters to cover the needs of fluid dispensing ranging from small repair shops to car dealerships, trucks, fleet, off-road, mining and marine maintenance facilities.
- No calibration required. Precision machined fluid chamber keeping tight tolerances, quality gears and stainless steel shafts, together with individual wet test for performance and accuracy, guarantees accurate dispensing regardless of the fluid viscosity, outside temperature and system pressure.
- Oval gear meter technology is adequate for high count precision and low flow resistance.
- Multiple units of measures: liters, quarts, pints or gallons. readout in 0,01 increments for precise fillings.
- Trip mode function: re-settable totalizer function can operate as an economical simple fluid inventory control system.
- Non-re-settable totalizer function.
- Poly carbonate register housing provides superb impact resistance for durability even in the toughest environments.
- Though thermo Plastic elastomer boot surrounds the entire meter for even greater durability.
- Sealed battery compartment: battery clips mounted on electronic board. no cables for battery contact that ensures protection against impact or vibrations and when replacing batteries.
- Electronic register is isolated from fluid meter module to be protected against leaks.
- Flange coupling between valve and meter eliminates the use of connection adapters, which can become loose causing leaks and offers a better integrated product.
- Large ported ball-bearing swivel with inlet screen protects meter and valve from debris.
- Extensively and rigorously field tested for reliable performance in all shop situations.
- Low power consumption electronic module with auto-sleep function for extended battery life.
- Swivel, meter and outlet connection covers safeguards automobiles and machines from nicks and scratches.
- Affordable reparability: electronic board or complete register can be changed easily and does not require re-calibration operation.
- Trigger lock button, prevents accidental dispense, allows the gun to be locked in open position and has an easy-release function.
- Aluminium body with lightweight ergonomic soft grip handles for comfort and precision balance.
- Cam & Piston valve design for superb control and minimum flow resistance
Fluids Handled
Synthetic and mineral based oil
Gear Oil
Hydraulic oil and fluids
ATF
Antifreeze solutions
Flexible Outlet With 90 Degree Angled Tube With Quarter Turn Non-Drip Tip
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications
- Maximum Flow Rate | 8 gal/min (30 l/min)
- Accuracy | +/- 0.5%
- Maximum Working Pressure | 1,450 psi (100 bar)
- Batteries | 2 x AAA 1.5 V alkaline batteries
- Fluid inlet | 1/2" NPT (F)
- Fluid Outlet | 1/2" NPT (F)
- Wetted | Acetal / Aluminum / Stainless Steel / NBR / Zinc Plated Steel / TPU / Polyamide
- Fluid Compatibility | Lubricants, ATF, Antifreeze (glycol) and antifreeze - water solutions
- Weight | 2.86 lb (1,30 kg)
- Extensively and rigorously field tested. Reliable Performance.
- High precision machined measuring chamber with tight tolerances, quality gears and stainless steel shafts eliminate the need of calibration to adjust for fluid viscosity.
- Sealed battery compartment and isolated electronic register or extended life.
- Easy to read large character display, with batch, trip (re-settable totalizer) and totalizer functions.
- Rough TPE boot surrounds the entire meter for even greater durability.
- Replaceable AAA batteries
Shipping Weight: 4lbs
Dimensions: 15 X 8 X 5 inches
