Dispensing Control Valves

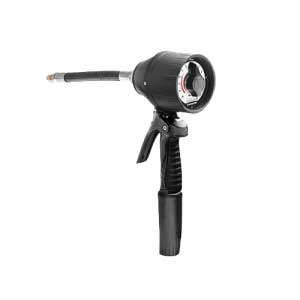

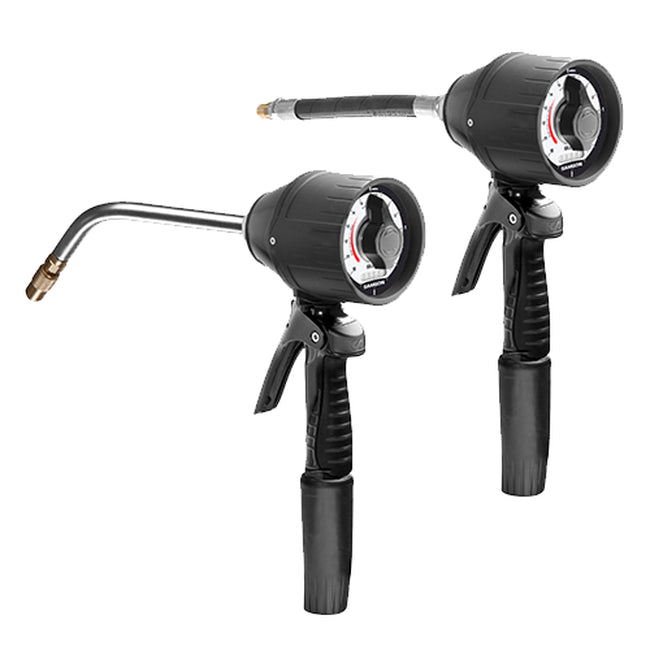

Samson 365 805 - MC8 Mechanical Dispense Valve Flexible 4-16 Qts
- VENDOR:- Samson
- SKU# SPM365805
Description
Samson 365 805 - MC8 Mechanical Dispense Valve Flexible 4-16 Qts Auto Tip-Lubricants
Part No. 365 805
Samson mechanical metered control valves are used at the end of the hose assembly for measured dispensing of lubricants and anitfreeze solutions in tough, intensive use applications.
• Extensively and rigorously field tested. Reliable performance.
• No calibration required. High accuracy within a large viscosity range.
• One piece polycarbonate based integral register housing and single molded pointer knob guarantee maximum integrity of the meter against drops and impacts and provide superb protection against humidity.
• Fully mechanical register.
• Simple and easy to read dial includes 5-digit totalizer
• Very tough metal construction, the meter is ideal for intensive use and outdoor applications.
• The MC8 uses the CV11 SERIES control handle. This handle is flange coupled to eliminate the use of adapters and eliminate leaks.
Fluids Handled
- Synthetic and mineral based oil
- Gear Oil
- Hydraulic oil and fluids
- ATF
- Antifreeze solutions
Specifications
- Maximum Free Flow Rate 8 gal/min (30 l/min)
- Maximum Working Pressure 1,450 psi (100 bar)
- Fluid Inlet 1/2" NPTF
- Fluid Outlet 1/2" NPTF
- Accuracy +/- 0.65%
- Power Source -
- Wetted Materials Aluminium, Zinc alloy, Stainless Steel, NBR, Brass, Steel, TPU, Polyamide
Shipping Weight: 6 lbs
Dimensions: 14 X 10 X 5 inches
