Samson 365 813 - MC8P Mechanical Preset Dispense Valve Rigid Gals Dial

VENDOR:- Samson

SKU# SPM365813

In Stock

$562.70

Quantity

- +

Only 0 left!

Important Shipping Information:-
• Orders received on Fridays after 11am EST will be processed the next business day
• All orders shipped to a RESIDENTIAL ADDRESS will be subject to Additional charges from all carriers at this time.
• What is LIMITED ACCESS - Commercial / Non-Commercial / Farms Click Here to Read More

Description

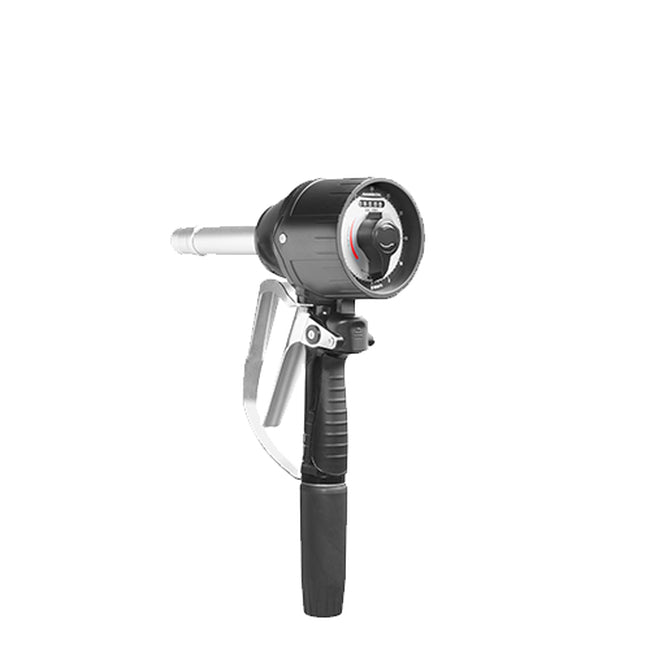

Samson 365 813 - MC8P Mechanical Preset Dispense Valve Rigid Gals Dial No-drip Tip

Part No. 365 813

Samson mechanical preset metered control valves allow filling crankcases, engines and other lubricants reservoirs.

• Extensively and rigorously field tested. Reliable performance.
• No calibration required. High accuracy within a large viscosity range.
• One piece polycarbonate based integral register housing and single molded pointer knob guarantee maximum integrity of the meter against drops and impacts and provide superb protection against humidity.
• The reset mechanism incorporates a safety clutch for preserving the preset mechanism in case the knob is turned in the wrong direction.
• Mechanical shut-off mechanism. High wear and stress resistant shut off mechanism.
• Simple and easy to read dial includes 5-digit totalizer
• Very tough metal construction, the meter is ideal for intensive use and outdoor applications.
• CV11 SERIES Control valve is flange coupled to eliminate the use of adaptors and eliminate leaks.

Fluids Handled

Synthetic and mineral based oil
Gear Oil
Hydraulic oil and fluids
ATF

WARNING: This product may expose you to chemicals including lead which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specifications

Maximum Free Flow Rate 8 gal/min (30 l/min)
Maximum Working Pressure 1,450 psi (100 bar)
Fluid Inlet 1/2" NPTF
Fluid Outlet 1/2" NPTF
Accuracy +/- 0.65%
Power Source -
Wetted Materials Aluminium, Zinc alloy, Stainless Steel, NBR, Brass, Steel, TPU, Polyamide

Shipping Weight: 5 lbs

Dimensions: 15 X 8 X 5 inches
