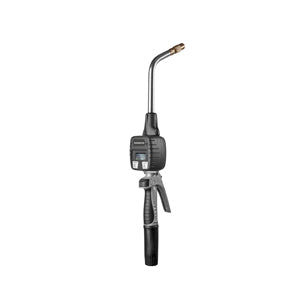

Samson 365 536 - EC8 Rigid Outlet with 60 Degree Angled Nozzle
Part No. 365 536
SAMSON electronic-metered control valves have been specifically designed to measure and dispense volumes of all kind of synthetic and mineral oils and to lead the competition in technology and innovation. SAMSON manufactures a range of oval-gear electronic meters, which can be programmed to register in either quarts, pints, gallons or liters to cover the needs of fluid dispensing ranging from small repair shops to car dealerships, trucks, fleet, off-road, mining and marine maintenance facilities.
- Digital Oil Meter for mineral and synthetic lubricants up to 140 SAE
- 1/2" inlet, 0.25 to 8 gallon/minute
- Accuracy: plus or minus 0.5%
- Patented electronic circuit board for today's high quality demands.
- Precision engineered oval gears with 200 pulses per unit of measurement.
- Uses standard AAA 1.5 volt alkaline batteries - available anywhere
- Twice the accuracy of other oval gear meters with maximum flow and minimum pressure drop.
- Battery replacement from top of the meter - no need to take meter apart.
- Memory remains intact indefinitely when replacing batteries.
- Simple infield memory calibration - no calculations or disassembling of the meter are required.
- Flange coupled and sealed to the control valve.
- No adapters or fittings to leak. (moisture proof)
- Large (quarts) batch display, reset-able after each use.
- Permanent, non-reset-able totalizer (gallons) for reliable inventory control.
- Extensively field tested for proven reliability in high volume applications.
- Tested and passed: pressure, humidity, temperature, impact, vibration, shock, and magnetic tests.
- Patented design with the newest manufacturing and assembly techniques for the lowest cost - highest quality electronic meter available
- 5 year warranty
- No calibration required. Precision machined fluid chamber keeping tight tolerances, quality gears and stainless steel shafts, together with individual wet test for performance and accuracy, guarantees accurate dispensing regardless of the fluid viscosity, outside temperature and system pressure.
- Oval gear meter technology is adequate for high count precision and low flow resistance.
- Multiple units of measures: liters, quarts, pints or gallons. readout in 0,01 increments for precise fillings.
- Trip mode function: re-settable totalizer function can operate as an economical simple fluid inventory control system.
- Non-re-settable totalizer function.
- Poly-carbonate register housing provides superb impact resistance for durability even in the toughest environments.
- Though Thermo Plastic Elastomer boot surrounds the entire meter for even greater durability.
- Sealed battery compartment: Battery clips mounted on electronic board. No cables for battery contact that ensures protection against impact or vibrations and when replacing batteries.
- Electronic register is isolated from fluid meter module to be protected against leaks.
- Flange coupling between valve and meter eliminates the use of connection adapters, which can become loose causing leaks and offers a better integrated product.
- Large ported ball-bearing swivel with inlet screen protects meter and valve from debris.
- Extensively and rigorously field tested for reliable performance in all shop situations.
Fluids Handled
Synthetic and mineral based oil
Gear Oil
Hydraulic oil and fluids
ATF
Antifreeze solutions
****60 Degree Rigid With Quarter Turn Opening Non-Drip Tip****
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications
- Maximum Flow Rate | 8 gal/min (30 l/min)
- Accuracy | +/- 0.5%
- Maximum Working Pressure | 1,450 psi (100 bar)
- Batteries | 2 x AAA 1.5 V alkaline batteries
- Fluid inlet | 1/2" NPT (F)
- Fluid Outlet | 1/2" NPT (F)
- Wetted | Acetal / Aluminum / Stainless Steel / NBR / Zinc Plated Steel / TPU / Polyamide
- Fluid Compatibility | Lubricants, ATF, Antifreeze (glycol) and antifreeze - water solutions
- Weight | 2.86 lb (1,30 kg)
- Extensively and rigorously field tested. Reliable Performance.
- High precision machined measuring chamber with tight tolerances, quality gears and stainless steel shafts eliminate the need of calibration to adjust for fluid viscosity.
- Sealed battery compartment and isolated electronic register or extended life.
- Easy to read large character display, with batch, trip (re-settable totalizer) and totalizer functions.
- Rough TPE boot surrounds the entire meter for even greater durability.
- Replaceable AAA batteries
Shipping Weight: 5lbs
Dimensions: 15 X 8 X 5 inches
