Fluid Evacuation Pump

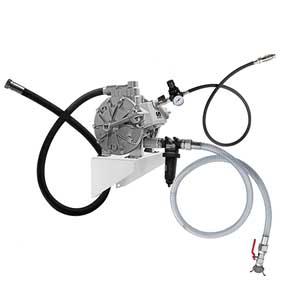

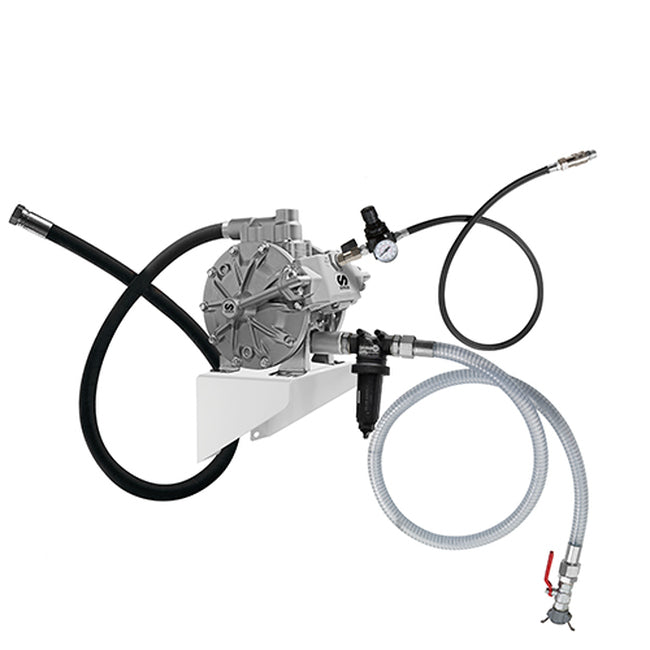

Samson 379 018 - Waste Fluid Evacuation Pump 1 in. - 50 gal/min
- VENDOR:- Samson
- SKU# SPM379018
Description
Samson 379 018 - Waste Fluid Evacuation Pump 1 in. - 50 gal/min (DP200 Metal Pump - Buna-N/Acetal)
Part No. 379 018
Wall mounted pump kits used to empty waste oil and waste antifreeze receivers.
They included the pump listed for each model equipped with:
• Wall bracket
• Air connection kit with air pressure regulator for controlling pump speed, air quick coupler and nipple.
• Suction hose with cam-lock connector, shut-off valve and filter at pump inlet
• 5’ discharge hose.
Typical applications for polypropylene pumps are transferring and dispensing of Windshield wash and antifreeze solutions and AdBlue®/DEF.
Metal pumps have an Aluminum air motor. Typical applications for these pumps are transferring and dispensing of antifreeze solutions, lubricants, diesel, and waste oil evacuation.
Pump inlet and outlet ports can be mounted in different positions for increased installation versatility.
Wall mounted waste fluid evacuation pump kit. Includes 1” - 50 gal/min diaphragm pump with aluminum and Buna-N wetted (pump Part No. 555 030 DP200 Metal Pump - Buna-N/Acetal).
Specifications
- Pump Pressure Ratio 1:1
- Maximum Free Flow Rate 53 gal/min (200 l/min)
- Maximum Suction Lift 26' (8 m)
- Minimum Air Pressure 22 (1.5 bar)
- Maximum Air Pressure 120 psi (8 bar)
- Max Size Solid Suspension 1/4" (6 mm)
- Air Inlet 3/8" NSPM (F)
- Fluid Outlet-Plastic 1" DIN PN-10 DN25 Flange and ANSI B16.5 1" 150 lb flange
- Fluid Outlet-Metal 1" NPTF
- Fluid Inlet-Plastic 1" DIN PN-10 DN25 Flange and ANSI B16.5 1" 150 lb flange
- Fluid Inlet-Metal 1" NPTF
- Wetted Materials Buna-N, Stainless Steel, FKM
- Wall mounted waste fluid evacuation pump kit
- Includes 1” - 50 gal/min diaphragm pump with aluminum and Buna-N wetted (pump Part No. 555 030).
Shipping Weight: 48 lbs
Dimensions: 25 × 15 × 19 inches
