Fluid Evacuation Pump
Samson 379 701 - Waste Fluid Evacuation Pump 1 in. - 46 gal/min
- VENDOR:- Samson
- SKU# SPM379701
Description

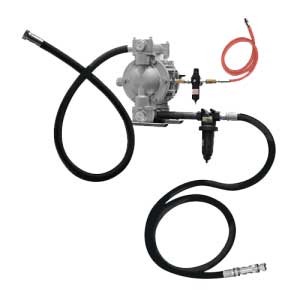

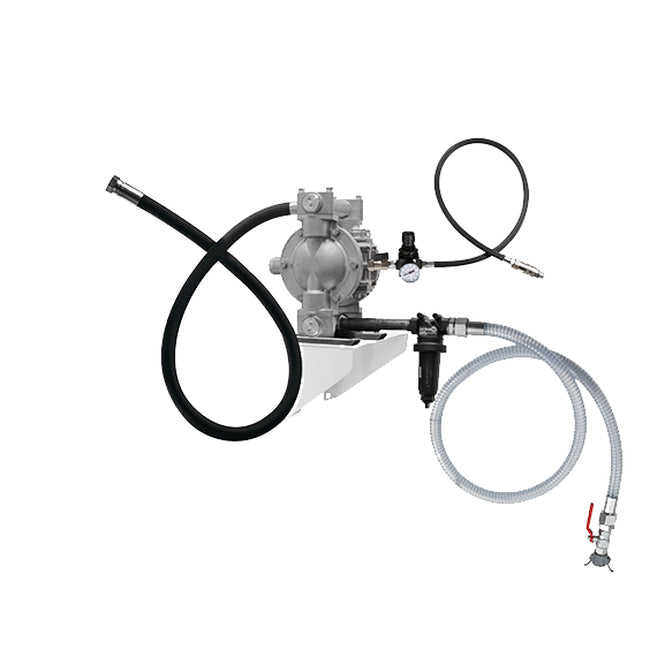

Samson 379 701 - Waste Fluid Evacuation Pump 1 in. - 46 gal/min
Part No. 379 701
Wall mounted pump kits used to empty waste oil and waste antifreeze receivers.
They included the pump listed for each model equipped with:
• Wall bracket
• Air connection kit with air pressure regulator for controlling pump speed, air quick coupler and nipple.
• Suction hose with cam-lock connector, shut-off valve and filter at pump inlet
• 5’ discharge hose.
Conventional air operated diaphragm pumps pump the fluid around the outside of the pump and compressed air acts on the inside face of the diaphragms.
Wall mounted waste fluid evacuation pump kit. Includes 1” - 46 gal/min UL listed
diaphragm pump with aluminum and Buna-N wetted (pump Part No. 2836).
Specifications
- Pump Pressure Ratio 1:1
- Maximum Free Flow Rate 40 gal/min (150 l/min)
- Minimum Air Pressure 20 psi (1.5 bar)
- Maximum Air Pressure 100 psi (7 bar)
- Max Size Solid Suspension 3/16"
- Air Inlet 3/8" NPTF
- Fluid Outlet 1" NPTF
- Fluid Inlet 1" NPTF
- Wetted Materials Aluminum, NBR
Shipping Weight: 52 lbs
Dimensions: 25 × 15 × 19 inches
Shipping
This is a Plus Shipping item which only can be shipped to destinations within the 48 contiguous United States. Alaska, Hawaii, and any/all US territories and international orders are excluded.
Price will be calculated at check-out.
UPS Shipping rates are calculated based on actual and dimensional weights. To find your rate, add the item to your cart and then enter your zip code into the right hand side of the shopping cart. If your total UPS order is over 120 lbs, the system will not calculate charges.
*Note: If you are having trouble checking out, please call us at (706) 478-0072.
OR
If you have a special shipping request you need arranged, please email
or call us.
Please Review our Terms of Service, Shipping Policy, Return & Refund, Policy Pages.
