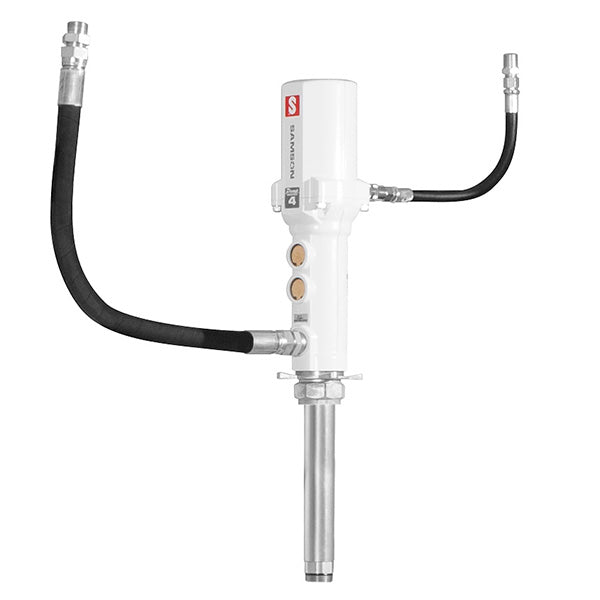

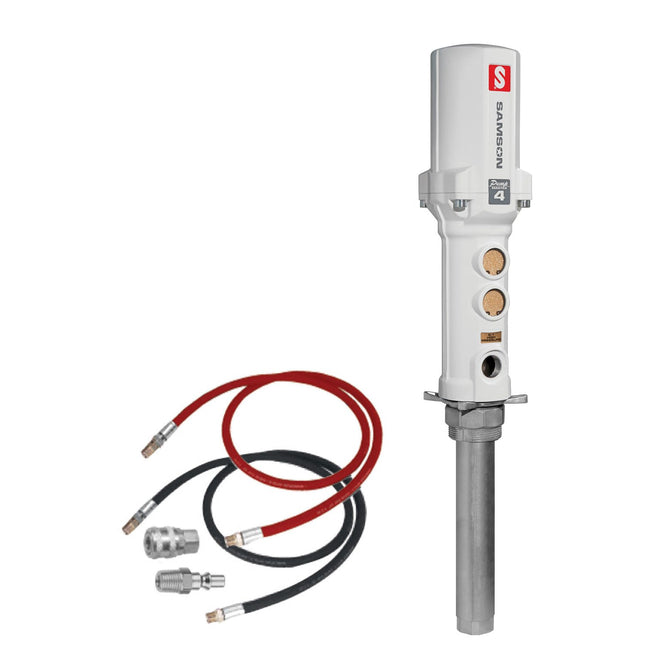

Samson 410 PumpMaster 4 - 5:1 Stub Pump And Connection Kit

• Pump Pressure Ratio 5:1
• Continuous Duty Flow Rate 2.7 gpm (10 l/min)
• Maximum Free Flow Rat 6.6 gpm (25 l/min)
• Air Pressure Operating Range 20-140 psi (1.5-10 bar)
• Maximum Outlet Pressure 700 psi (50 bar)
• Air Motor Effective Diameter 2 1/2" (60 mm)
• Air Motor Stroke 4" (100 mm)
• Air Consumption 14 scfm (400 NL/min)
• Air Inlet 3/8" NPTF
• Fluid Inlet 1" NPTF
• Fluid Outlet 3/4" NPTF
• Wetted Materials Aluminium, Steel, NBR, PTFE, Polyurethane
• Noise Level 80 dB
• Application Stub pump, 16 gal drum pump, 55 gal drum, 257/500 tank, 60" tank
• Simultaneous Dispense Points 1-2
• Max. Line Length 500' (150 m)
• Pump Description Standard Duty Medium Pressure

Shipping Weight 25 lbs.

Dimensions: 31 X 7 X 5 inches

Tech Sheet

Service Manual
