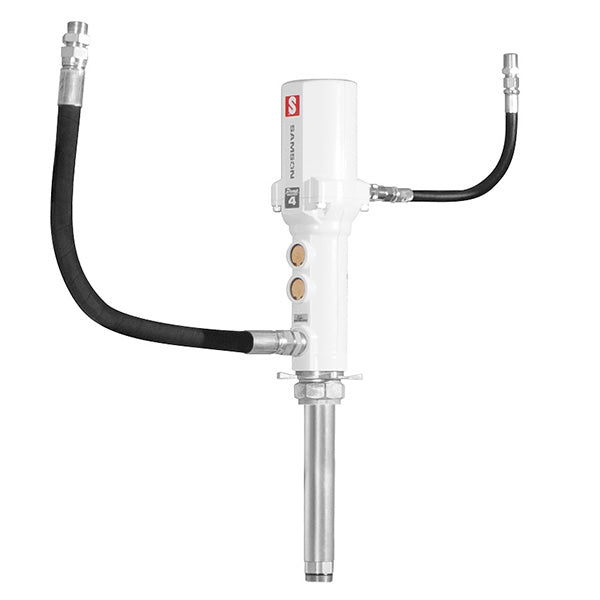

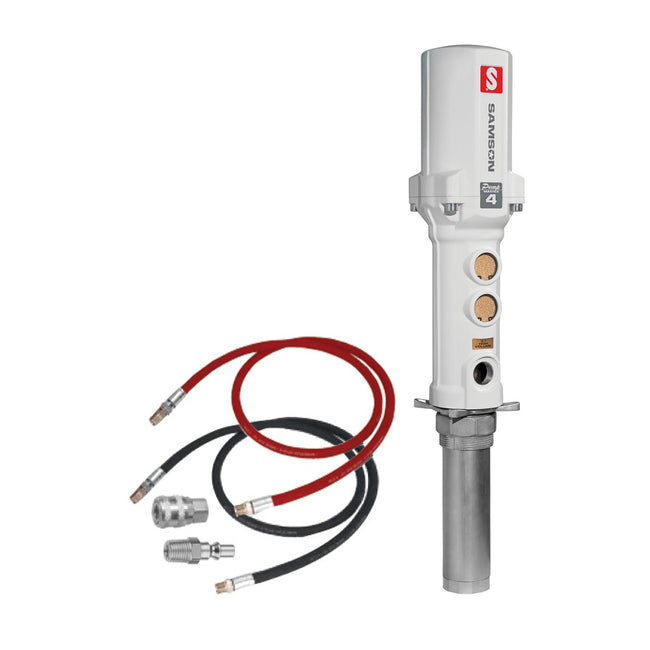

Samson 440 PumpMaster 4 - 3:1 Pump and Hose Package Stub

Technical data Pressure ratio 5:1

• Air pressure operating range 20 to 140 psi (1,5 - 10 bar)
• Air consumption (1) 14 scfm (400 NL/min)
• Maximum fluid outlet pressure 700 psi (50 bar)
• Air motor diameter 3 1/2" (88 mm)
• Air motor effective diameter 2 1/2" (60 mm)
• Air motor stroke 4" (100 mm)
• Delivery at 125 cpm 2.7 US gpm (10 l/min)
• Maximum free flow delivery (2) 6.6 US gpm (25 l/min)
• Air inlet 3/8" NPTF
• Fluid inlet (stub pump only) 1" NPTF
• Fluid outlet 3/4" NPTF
• Wetted and seal materials Aluminum / Steel / Polyurethane / NBR / PTFE
• Noise level (3) 80 dB
• Manual 834 811

Shipping Weight 20 lbs.

Dimensions: 31 X 7 X 6 inches

Tech Sheet
