![Samson 506 321 - Aluminum Base and Arms, Composite Spool, Hose Reel - Tire Equipment Supply](http://tireequipmentsupply.com/cdn/shop/products/506-Series_fac829ac-8823-4eff-92e7-964f1ba227e6_{width}x.jpg?v=1701286523)
Hose Reels Aluminum Base and Arms, Composite

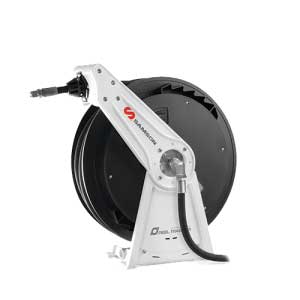

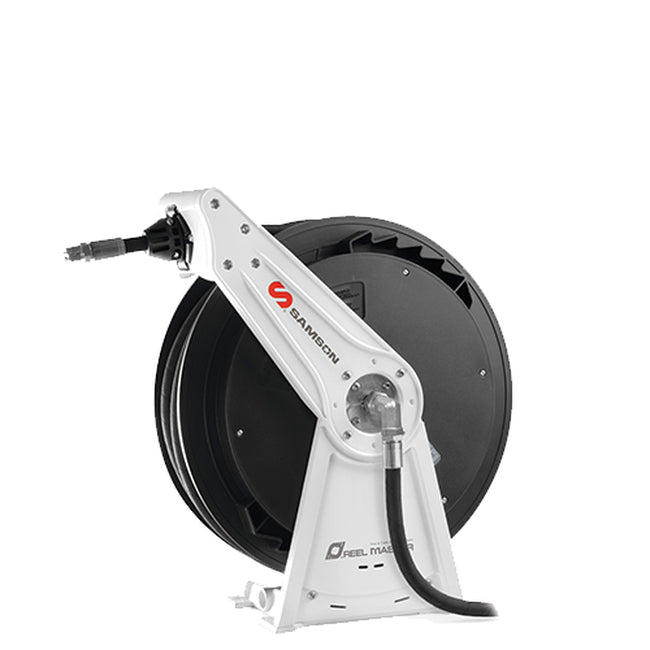

Samson 506 321 - Aluminum Base and Arms, Composite Spool, Hose Reel
- VENDOR:- Samson
- SKU# SPM506321
Description
Samson 506 321 - Aluminum Base and Arms, Composite Spool, Hose Reel - 50ft. Hose
Part No. 506 321
506 Series High Pressure
Aluminum base and guide arm provide the rigidity to withstand the most demanding applications while offering a reduced weight for easy installation.
Fatigue resistant steel spring for years of durable performance and even load when pulling and recoiling the hose.
Fully ported shaft and swivel.
Spool mounted on two permanently lubricated and sealed ball bearings to reduce torque load on spring for smooth retraction and longer life.
Large guide latching area for easier operation.
Six roller guide outlet prevents hose pinching and reduces friction.
Hose guide arm can be placed in different positions to accommodate any method of mounting.
Hose reels with hose include 30" inlet hose.
Fluids Handled
- Grease
Specifications
- Hose Length 50'
- Hose ID 3/8"
- Outlet Thread 1/4" NPTM
- Max. Working Pressure 4,000 psi
Shipping Weight: 42 lbs
Dimensions: 22 X 10 X 25 inches
Shipping
This is a Plus Shipping item which only can be shipped to destinations within the 48 contiguous United States. Alaska, Hawaii, and any/all US territories and international orders are excluded.
Price will be calculated at check-out.
UPS Shipping rates are calculated based on actual and dimensional weights. To find your rate, add the item to your cart and then enter your zip code into the right hand side of the shopping cart. If your total UPS order is over 120 lbs, the system will not calculate charges.
*Note: If you are having trouble checking out, please call us at (706) 478-0072.
OR
If you have a special shipping request you need arranged, please email
or call us.
Please Review our Terms of Service, Shipping Policy, Return & Refund, Policy Pages.
