![Samson 508 152 - 508 Series Low Pressure Air & Water Hose Reels - Tire Equipment Supply](http://tireequipmentsupply.com/cdn/shop/products/508-series_4fbd441f-06e5-4235-9afb-7201f28986d7_{width}x.jpg?v=1701286464)
Low Pressure Hose Reels

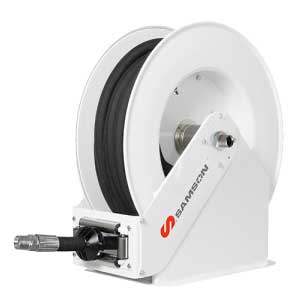

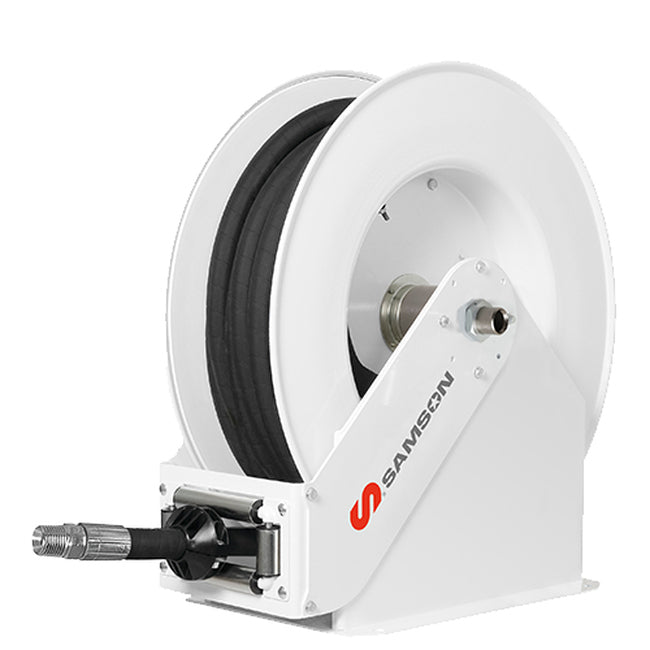

Samson 508 152 - 508 Series Low Pressure Air & Water Hose Reels
- VENDOR:- Samson
- SKU# SPM508152
Description
Samson 508 152 - 508 Series Low Pressure Air & Water Hose Reels
Part No. 508152
• Very tough construction large capacity reels, able to stand regular use and abuse in Intensive Duty applications.
• Fatigue resistant steel spring for years of durable performance and even load when pulling and recoiling the hose.
• Fully ported shaft and swivel.
• Spool mounted on two permanently lubricated and sealed ball bearings to reduce torque load on spring for smooth retraction and longer life.
• Large latching area for easier operation.
• Hose guide arm can be placed in different positions to accommodate any method of mounting.
• Narrow footprint allows mounting more reels on the same surface.
Fluids Handled
Water
Air
Waterbased Fluids
Specifications
- Hose Length 100'
- Hose ID 1/2"
- Outlet Thread 1/2" NPTM
- Max. Working Pressure 300 psi
Shipping Weight: 121 lbs
Dimensions: 48 X 47 X 39 inches
