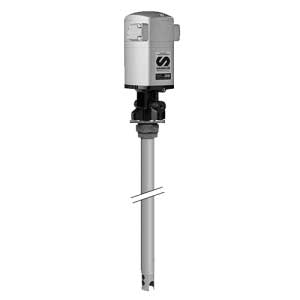

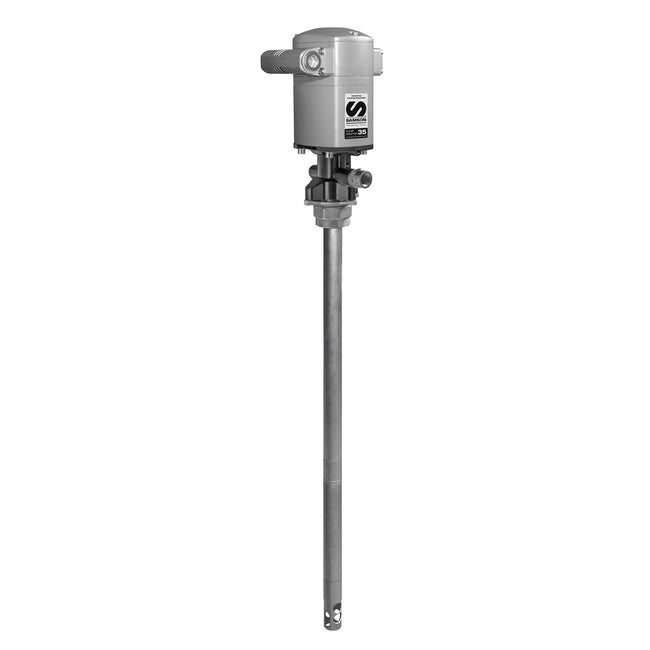

Samson 530 621 - PM35 60:1 - 120lb Keg Grease Pump Kit Kit

• Pump Pressure Ratio 60:1
• Continupus Duty Flow Rate 1.1 lb/min (500 g/min)
• Maximum Free Flow Rat 2.6 lb/min (1,200 g/min)
• Air Pressure Operating Range 20-145 psi (1.5-10 bar)
• Maximum Outlet Pressure 8,700 psi (600 bar)
• Air Motor Effective Diameter 3 15/100" (80 mm)
• Air Motor Stroke 3 15/100" (80 mm)
• Air Consumption 15.9 scfm (450 NL/min)
• Air Inlet 3/8" NPTF
• Fluid Outlet 3/84" NPTF
• Wetted Materials Cast Iron, Hard Chromed Steel, Steel, UHMWPE, NBR, PTFE, Viton
• Noise Level 80 dB
• Application 35 lb pail, 120 lb keg, 400 lb drum
• Simultaneous Dispense Points 1-2
• Max. Line Length 250' (75 m)
• Pump Description Heavy Duty High Pressure

Shipping Weight: 42 lbs

Dimensions: 41 X 9 X 9 inches
