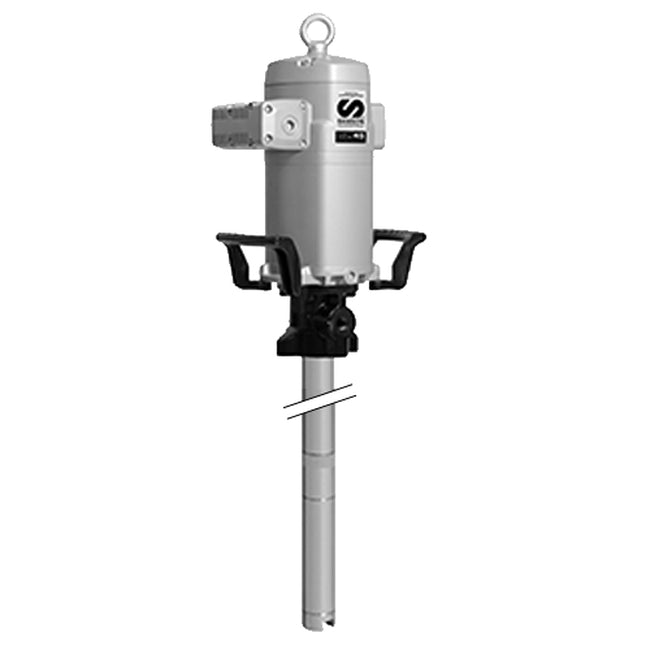

Samson 531 411 - PM45 40:1 - 400lb Grease Drum Grease Pump

Description

Samson 531 411 - PM45 40:1 - 400lb Grease Drum Grease Pump

Part No.  531411 -400 lb drum pump

High Flow double acting pumps with high pressure delivery for use in lubrication systems that require a combination of high flow and pressure delivery. Pumps can be used with grease up to NLGI-2 viscosity.

Fluids Handled
Grease up to NLGI-2

Specifications

• Pump Pressure Ratio 40:1
• Continupus Duty Flow Rate 7.5 lb/min (3.5 kg/min)
• Maximum Free Flow Rat 22 lb/min (11 kg/min)
• Air Pressure Operating Range 20-200 psi (1.5-14 bar)
• Maximum Outlet Pressure 8,000 psi (560 bar)
• Air Motor Effective Diameter 4 1/2" (115 mm)
• Air Motor Stroke 4" (100 mm)
• Air Consumption 26.5 scfm (750 NL/min)
• Air Inlet 1/2" NPTF
• Fluid Outlet 1/2" NPTF
• Wetted Materials Cast Iron, Steel, Hard Chromed Steel, UHMWPR, NBR
• Noise Level 80 dB
• Application 120 lb keg, 400 lb drum, Bulk tote
• Simultaneous Dispense Points 4+
• Max. Line Length 400' (125 m)
• Pump Description Heavy Duty High Flow

Shipping Weight: 60 lbs

Dimensions: 55 X 14 X 10 inches
