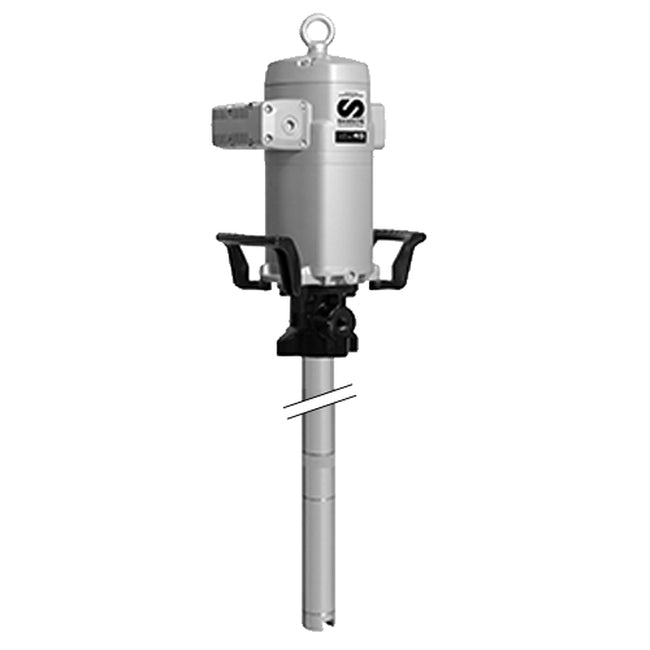

Samson 531 711 - PM45 70:1 - 400lb Drum Grease Pump

Specifications

• Pump Pressure Ratio 70:1
• Continupus Duty Flow Rate 4.5 lb/min (2 kg/min)
• Maximum Free Flow Rat 16.5 lb/min (7.5 kg/min)
• Air Pressure Operating Range 20-100 psi (1.5-7 bar)
• Maximum Outlet Pressure 7,000 psi (490 bar)
• Air Motor Effective Diameter 4 1/2" (115 mm)
• Air Motor Stroke 4" (100 mm)
• Air Consumption 33 scfm (925 NL/min)
• Air Inlet 1/2" NPTF
• Fluid Outlet 1/2" NPTF
• Wetted Materials Cast Iron, Steel, Hard Chromed Steel, UHMWPR, NBR
• Noise Level 80 dB
• Application 120 lb keg, 400 lb drum, Bulk tote
• Simultaneous Dispense Points 4+
• Max. Line Length 600' (175 m)
• Pump Description Heavy Duty High Pressure

Shipping Weight: 64 lbs

Dimensions: 56 X 14 X 10 inches
