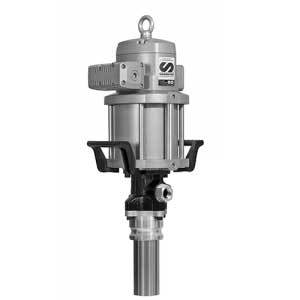

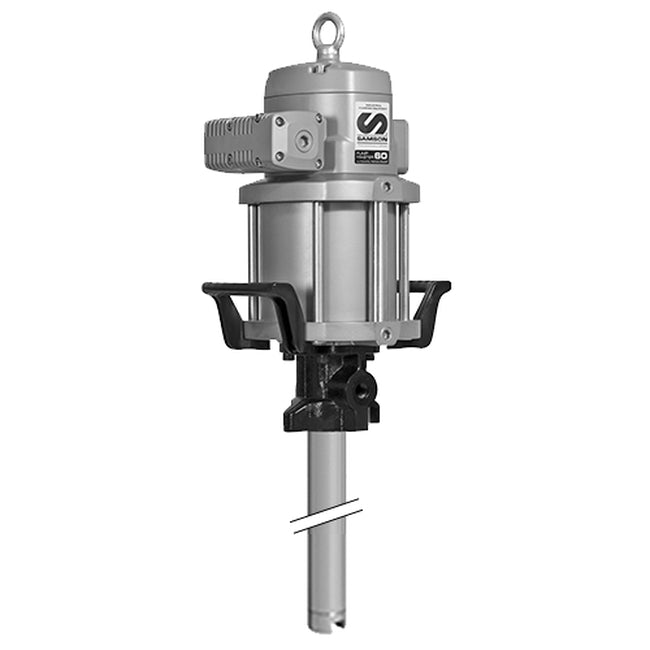

Samson 532 821 - PM60 80:1 - 120lb Keg Flange Mounted Grease Pump

Specifications

• Pump Pressure Ratio 25:1
• Continupus Duty Flow Rate 13.5 lb/min (6 kg/min)
• Maximum Free Flow Rat 35.32 lb/min (16 kg/min)
• Air Pressure Operating Range 20-100 psi (1.5-7 bar)
• Maximum Outlet Pressure 8,000 psi (560 bar)
• Air Motor Effective Diameter 6" (150 mm)
• Air Motor Stroke 4" (100 mm)
• Air Consumption 35 scfm (1.000 NL/min)
• Air Inlet 1/2" NPTF
• Fluid Outlet 1/2" NPTF
• Wetted Materials Cast Iron, Steel, Hard Chromed Steel, UHMWPR, NBR, PTFE
• Noise Level 80 dB
• Application 120 lb keg, 400 lb drum
• Simultaneous Dispense Points 4+
• Max. Line Length 800' (250 m)
• Pump Description Heavy Duty High Performance

Shipping Weight: 53 lbs

Dimensions: 42 X 11 X 12 inches
