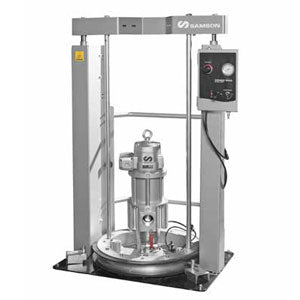

Samson 534 321 - PM60 - High Volume Grease Pump Transfer Package

Description

Samson 534 321 - PM60 - High Volume Grease Pump Transfer Package

Part No.  534321

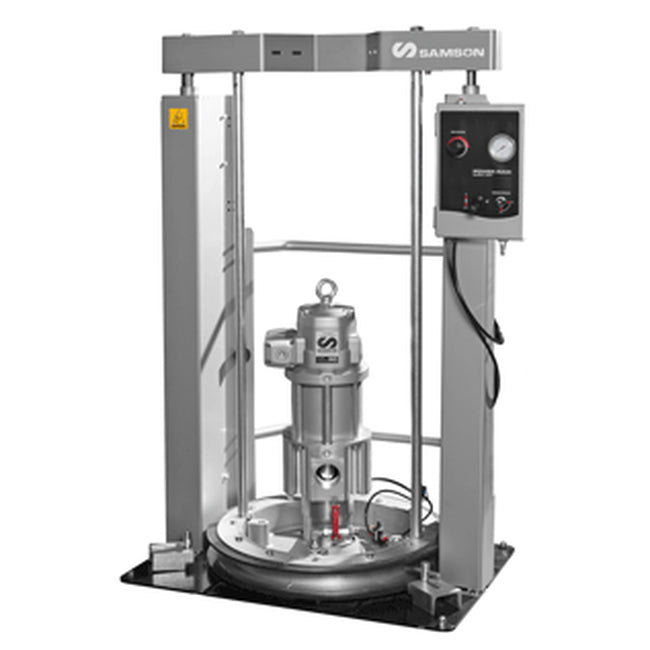

3:1 pressure ratio pump with a pm60 air motor for very high volume of grease through short hoses with a minimum i.D. of 1 1/2". Pump is mounted to an air operated double post inductor allowing the end user to empty a 400 lb drum in less than three minutes (NLGI-2 grease at 70 ºF, 100 psi air inlet pressure and a 2" delivery hose).
The air operated inductor includes a follower plate with double Buna-N lip seals, guide rods, drum retainers, controls for lowering and raising the follower plate with pressure regulator, and a valve for manually releasing the vacuum when the follower plate is removed from an empty drum.
Pump air connection accessories are not included.

(1) Air consumption at 70 psi air pressure, NLGI-2 grease at 68 ºF and 60 cpm.
Samson recommends using an air filter and air pressure regulator at the pump air inlet. Use 1/2" air accessories to obtain pump maximum performance.
For higher delivery, always use the shortest possible delivery hose with the largest i.d. possible.

Specifications

• Pump pressure ratio 3:1
• Maximum free flow 330 lb/min (150 Kg/min)
• Continuous duty flow rate at 80 cpm 132 lb/min (60 Kg/min)
• Air pressure operating range 30 to 100 psi (2 to 7 bar)
• Maximum outlet pressure 300 psi (21 bar)
• Air motor effective diameter 6” (150 mm)
• Air motor stroke 4” (100 mm)
• Air consumption (1) 44 scfm (1.250 Nl/min)
• Air inlet 1/2” NPT (F)
• Fluid outlet 2” NPT (F)
• Wetted and seal materials Steel / Hard chromed steel / Zinc plated steel / Aluminum

Shipping Weight: 135 lbs

Dimensions: 55 X 32 X 29 inches
