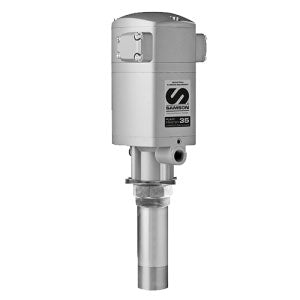

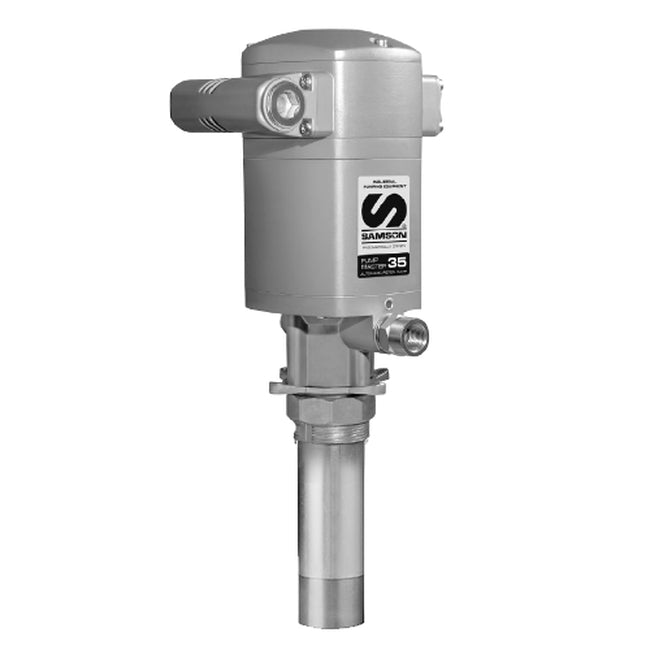

Samson 535 581 - PM35 - 5:1 Stub Oil Pump

Description

Samson 535 581 - PM35 - 5:1 Stub Oil Pump

Part No.  535581

Double acting air operated medium pressure delivery pump for oil distribution applications. Built in port for optional (PN 609 007) pressure relief valve.

Fluids Handled
Synthetic and mineral based oil
Transmission fluid
Hydraulic oil
Gear lube

Specifications

• Pump Pressure Ratio 5:1
• Continuous Duty Flow Rate 3.2 gpm (12 l/min)
• Maximum Free Flow Rat 8 gpm (30 l/min)
• Air Pressure Operating Range 30-175 psi (2-12 bar)
• Maximum Outlet Pressure 875 psi (60 bar)
• Air Motor Effective Diameter 3.15" (80 mm)
• Air Motor Stroke 3.15" (80 mm)
• Air Consumption 12.4 scfm (350 NL/min)
• Air Inlet 3/8" NPTF
• Fluid Inlet 1 1/2" NPTF
• Fluid Outlet 1/2" NPTF
• Wetted Materials Aluminium, Steel, NBR, Polyurethane, Hard chromed steel
• Noise Level 80 dB
• Application Stub pump with bung, stub pump, 55 gal drum
• Simultaneous Dispense Points 1-3
• Max. Line Length 500' (150 m)
• Pump Description Heavy Duty Medium Pressure

Shipping Weight: 55 lbs

Dimensions: 49 X 8 X 19 inches
