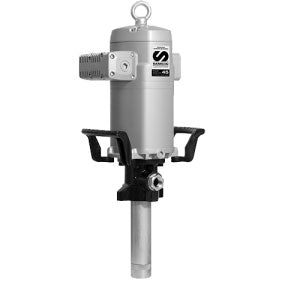

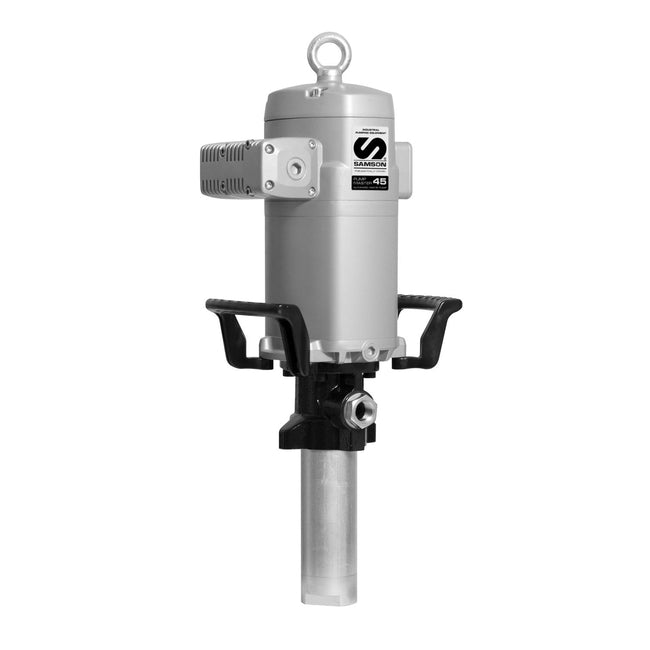

Samson 536 631 - PM45- 6:1 Stub Oil Pump - flange mounted

Specifications

• Pump Pressure Ratio 6:1
• Continuous Duty Flow Rate 6.6 gpm (25 l/min)
• Maximum Free Flow Rat 25 gpm 95 l/min)
• Air Pressure Operating Range 20-170 psi (1.5-12 bar)
• Maximum Outlet Pressure 1,020 psi (72 bar)
• Air Motor Effective Diameter 4.5" (115 mm)
• Air Motor Stroke 4" (100 mm)
• Air Consumption 29 scfm (830 NL/min)
• Air Inlet 1/2" NPTF
• Fluid Inlet 1 1/2" NPTF
• Fluid Outlet 3/4" NPTF
• Wetted Materials Cast Iron, Steel, NBR, Polyurethane, Hard chromed steel
• Noise Level 80 dB
• Application Stub pump
• Simultaneous Dispense Points 3-4
• Max. Line Length 525' (160 m)
• Pump Description Heavy Duty High Flow

Shipping Weight: 66 lbs

Dimensions: 31 x 15 x 15 inches
