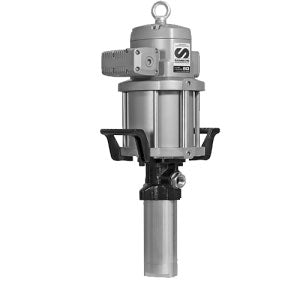

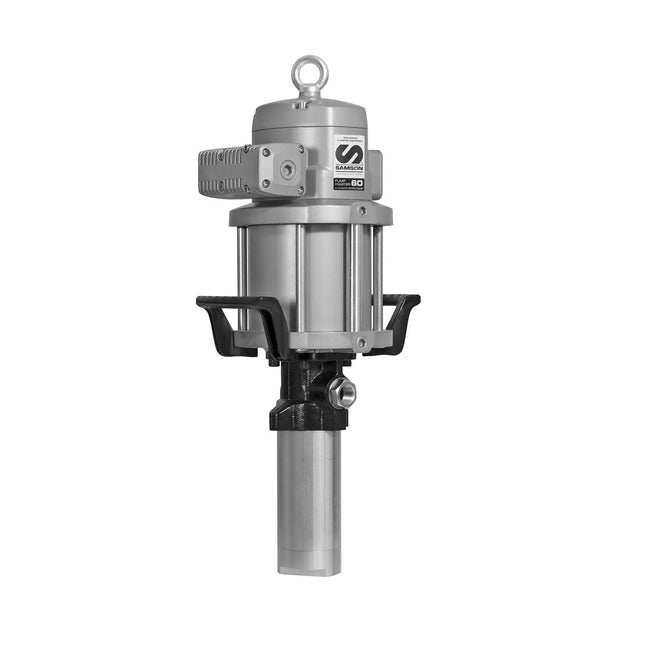

Samson 537 631 - PM60 - 6:1 Stub Oil Pump - flange mounted

Specifications

• Pump Pressure Ratio 6:1
• Continuous Duty Flow Rate 9.25 gpm (35 l/min)
• Maximum Free Flow Rat 26.5 gpm 100 l/min)
• Air Pressure Operating Range 20-170 psi (1.5-12 bar)
• Maximum Outlet Pressure 1,020 psi (72 bar)
• Air Motor Effective Diameter 6" (150 mm)
• Air Motor Stroke 4" (100 mm)
• Air Consumption 39 scfm (1.100 NL/min)
• Air Inlet 1/2" NPTF
• Fluid Inlet 1 1/2" NPTF
• Fluid Outlet 3/4" NPTF
• Wetted Materials Cast Iron, Aluminum, Nickel, Steel, NBR, Polyurethane
• Noise Level 80 dB
• Application Stub pump with bung
• Simultaneous Dispense Points 3-4
• Max. Line Length 525' (160 m)
• Pump Description Heavy Duty High Delivery

Shipping Weight: 68 lbs

Dimensions: 33 x 15 x 15 inches

Shipping

This item Qualifies for FREE SHIPPING it only applies to destinations within the 48 contiguous United States. Alaska, Hawaii, and any/all US territories and international orders are excluded.

This Free Shipping service is the slowest cheapest way of shipping and is not time sensitive , However you may upgraded to a faster service at check-out for an additional price which is calculated upon check-out according to Zip and State.

*Note:
 If you are having trouble checking out or need additional help please call us at  (321)-423-5290 so we can give you an updated shipping quote. (321)-423-5290

OR

If you have a special shipping need you need arranged please email
or call us.

Please Review our Terms of Service, Shipping Policy, Return & Refund, Policy Pages.

Warranty Information

STANDARD WARRANTY
Samson warrants the equipment manufactured by Samson and bearing its name to be free from defects in materials and workmanship for a period of (2) year following the date of purchase by the distributor. This warranty applies only to equipment installed by an authorized distributor and operated and/ or maintained in accordance with Samson’s written recommendations. At Samson’s discretion and with a distributor’s original purchase order and proof of installation date, an on-shelf allowance of no more than six months may be added.

For more details, read the Full Standard Warranty on Samson's Website.

Service parts carry a 90-day warranty

Items sold, but not manufactured by Samson (including materials, equipment, or components such as hoses, FRLs, electric motors, etc.) are subject to the warranty, if any, of the original manufacturer. Samson will provide purchaser with reasonable assistance in making any claim for breach of these warranties. However, if the original manufacturer denies such warranty claims, Samson has no additional liability.

All equipment determined by Samson to have defective materials or workmanship within the warranty period will be repaired or replaced at Samson’s discretion. This warranty specifically excludes soft parts and normal wear parts.

Samson standard warranty covers defects in materials and workmanship only. This warranty does not cover, nor shall Samson be liable for repair or replacement of parts or equipment resulting from:

• Failure of normal wear parts including but not limited to: O-rings, packings, seals and valves
• Wear and tear through normal use
• Damage or failure caused by not following proper installation procedures found in Samson Service Manuals and/or installation by non-authorized Samson Service Center
• Abuse, misapplication, abrasion, corrosion, insufficient or improper maintenance, negligence, accident, alteration
• Damage caused by thermal expansion when adequate pressure relief was not included in the system
• Fluid incompatibility
• Substitution of non-Samson component parts
• Dirt, water, or debris in air and/or fluid lines; this includes, but is not limited to clogged inlet filters, strainers, regulators, meters, control handles, tips and valves
• Hose reel spring tension adjustment

This warranty is conditioned upon the prepaid return of the defective equipment to an authorized Samson distributor or Samson directly for verification of the claimed defect. If the claim is valid, Samson will repair or replace, free of charge, any defective parts. The equipment will be returned to the original purchaser, transportation prepaid. If the claim is not valid, Samson will contact the distributor via e-mail to determine disposition – either the product will be sent back to the customer per customer’s expense, or the customer must provide written authorization to Samson allowing Samson to dispose of the customer’s equipment. Samson warrants the equipment manufactured by Samson and bearing its name to be free from defects in materials and workmanship for a period of (2) year following the date of purchase by the distributor. This warranty applies only to equipment installed by an authorized distributor and operated and/or maintained in accordance with Samson’s written recommendations. At Samson’s discretion and with a distributor’s original purchase order and proof of installation date, an on shelf allowance of no more than six months may be added. Service parts carry a 90-day warranty.

Warranty Registration should be done direct on the Manufacturers website.

Disclaimer: This summary is based on published warranty information but may not be comprehensive. For full details, it is best to review the specific warranty policy for your product and contact Prevost directly.
