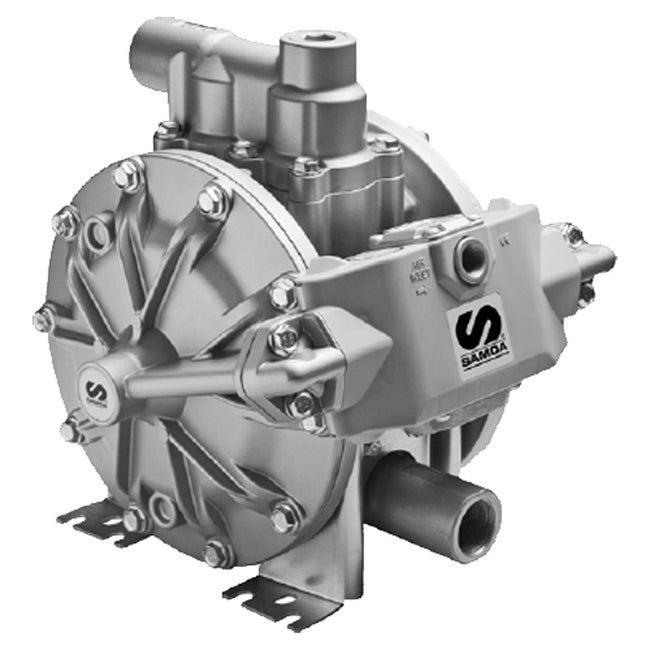

Samson 555 030 - Directflo 200 - Metal Pump - Buna-N/Aceta

Specifications

• Pump Pressure Ratio 1:1
• Maximum Free Flow Rate 53 gal/min (200 l/min)
• Maximum Suction Lift 26' (8 m)
• Minimum Air Pressure 22 (1.5 bar)
• Maximum Air Pressure 120 psi (8 bar)
• Max Size Solid Suspension 1/4" (6 mm)
• Air Inlet 3/8" NSPM (F)
• Fluid Outlet-Plastic 1" DIN PN-10 DN25 Flange and ANSI B16.5 1" 150 lb flange
• Fluid Outlet-Metal 1" NPTF
• Fluid Inlet-Plastic 1" DIN PN-10 DN25 Flange and ANSI B16.5 1" 150 lb flange
• Fluid Inlet-Metal 1" NPTF
• Wetted Materials Buna-N, Stainless Steel, FKM

Shipping Weight: 30 lbs

Dimensions: 16 X 13 X 13 inches
