Velvet Turn VBL8922L Bosch | ACCU Turn High Performance Single Speed Brake Lathe
Velvet Turn VBL8922L Bosch | ACCU Turn High Performance Single Speed Brake Lathe
BRAND: VELVET TURN
SKU: VBL8922L
In Stock
Couldn't load pickup availability

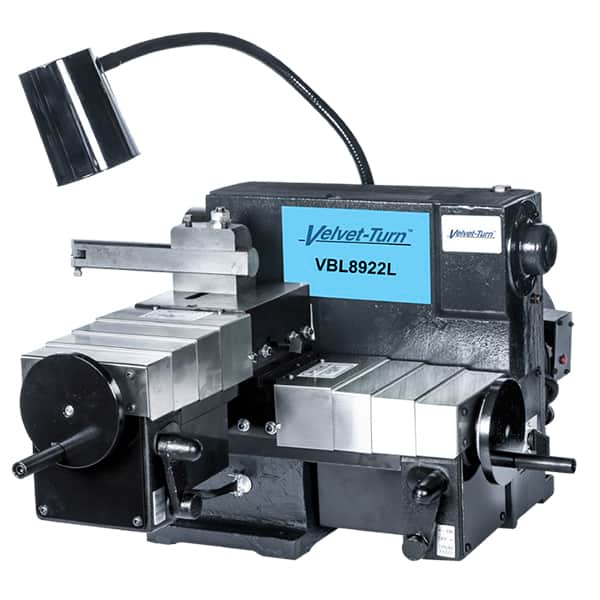

Velvet Turn BL8922L Same As Orifinal Bosch ACCU-Turn High Performance Single Speed Combination Brake Lathe
MODEL# VBL8922L (Bosch F00E9002177HH)
BRAKE LATHE KEY FEATURES/BENEFITS
The model VBL8944 variable speed bench lathe incorporates the legendary one cut finish performance with the advanced capabilities that infinitely adjustable feed speeds and multiple arbor speeds offer the discerning technician. With three available arbor speeds, and infinitely adjustable rotor and drum feed speeds, you have complete control over the micro-finish surface machined.
- Positive rake one pass finishing to get the job done right the first time every time
- Machines drums, flywheels, and all types of rotors including cross drilled and slotted
- Best in class ''Muscle Mass'' construction with a solid metal casting that eats up finish damaging vibrations
- External motor isolates the vibration from the cutting which results in a smooth cut
- Machine shop quality dovetail way and gibb construction, designed for years of smooth cuts
- Tapered roller bearing spindle supports eliminate play in the spindle for consistently smooth cuts
- BL 8944L Includes a multi-speed arbor as well as adjustable rotor and drum feed speeds for ultimate flexibility and control

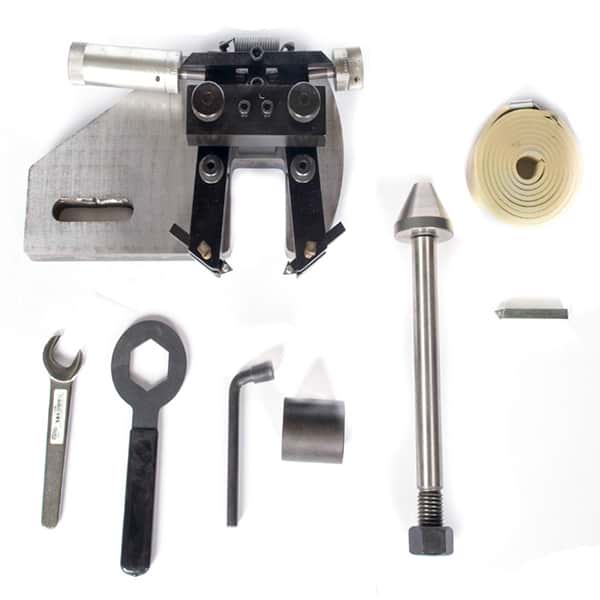

| INCLUDED STANDARD TOOLS | |
| 433701 | Arbor, 1" (25mm) |
| 433713 | Arbor Nut |
| 433702 | Drawbar |
| 436410 | Wrench, 1-1/2" |
| 434559 | Wrench, 7/8" (22mm) |
| 434558 | Wrench, 3/8" (10mm) |
| 433750 | Twin Cutter Assembly with Right Hand Tool |
| Holder (433763) and Straight Tool Holder (433286) | |
| 433796 | Carbide Inserts, 10pk |
| 433764 | Left Hand Tool Holder |
| 433782 | Drum Silencer |
| 433774 | Spacer, Twin Cutter |
| 433172 | Boring Bar Assembly with Short Tool Holder (433779) |
| 433715 | Washers |
| 433633 | T-Bolt |
| 4B4280 | Washer (Qty 2) |
| 433617 | Nut (Qty 2) |
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
| PART NUMBER | VBL8922L |
| Reference Part Number | F00E9002177HH |
| Single Or Multi-Speed | Single Speed |
| Rotor Capacity | 4"–24" |
| (102 mm – 610 mm) | |
| Rotor Max Width Of Surface | 4.5" |
| (114 mm) | |
| Rotor Max Thickness | 2.25" |
| (57 mm) | |
| Drum Capacity | 6"–28" |
| (152 mm – 711 mm) | |
| Drum Max Depth Of Cut | 6" |
| (152 mm) | |
| Flywheel Capacity | 6"–24" |
| (152 mm – 610 mm) | |
| Flywheel Friction Surface Capacity | 6" |
| (152 mm) | |
| Drum/Rotor/Flywheel Max Weight (Standard Arbor) | 150 LBS |
| (68 kg) | |
| Drum/Rotor/Flywheel Max Weight (Optional 1-7/8" Heavy Duty Arbor Set #434055) | 300 lbs |
| (136 kg) | |
| spindle Speed | 105 RPM |
| Rotor Feeds Per Revolution | 0.0030" |
| (0.077 mm) | |
| Drum Feeds Per Revolution | 0.0046" |
| (0.117 mm) | |
| Motor | 1 HP |
| (0.7 kW) | |
| Weight | 474 lbs |
| (215 kg) | |
| Includes Bench | NO |
| Includes #8010 Adaptor Group | NO |
| Velvet-Turn Extended Warranty* | YES |
