Velvet Turn VBL8944L Bosch | ACCU Turn High Performance Multi-Speed Brake Lathe

VENDOR:- VELVET TURN

SKU# VBL8944L

In Stock

$7,452.69

Quantity

- +

Only 0 left!

Important Shipping Information:-
• Orders received on Fridays after 11am EST will be processed the next business day
• All orders shipped to a RESIDENTIAL ADDRESS will be subject to Additional charges from all carriers at this time.
• What is LIMITED ACCESS - Commercial / Non-Commercial / Farms Click Here to Read More

Description

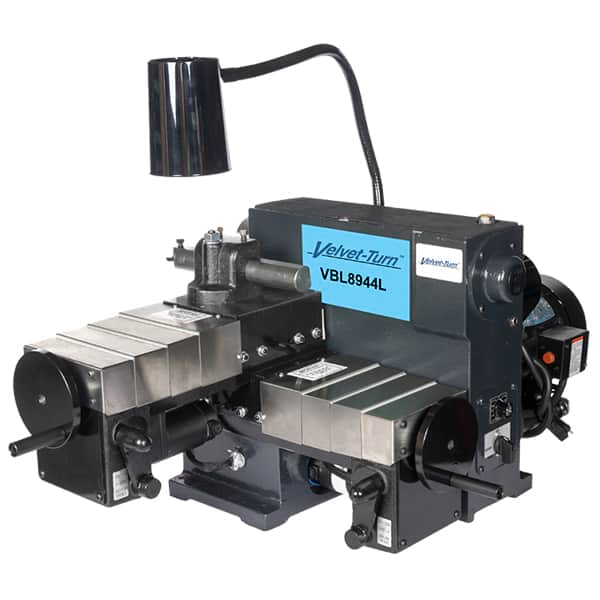

Velvet Turn VBL8944L Same As Orifinal Bosch ACCU-Turn High Performance Multi-Speed Combination Brake Lathe

MODEL# VBL8944L (Bosch F00E900218)

BRAKE LATHE KEY FEATURES/BENEFITS

The model VBL8944 variable speed bench lathe incorporates the legendary one cut finish performance with the advanced capabilities that infinitely adjustable feed speeds and multiple arbor speeds offer the discerning technician. With three available arbor speeds, and infinitely adjustable rotor and drum feed speeds, you have complete control over the micro-finish surface machined.

Positive rake one pass finishing to get the job done right the first time every time
Machines drums, flywheels, and all types of rotors including cross drilled and slotted
Best in class “Muscle Mass” construction with a solid metal casting that eats up finish damaging vibrations
External motor isolates the vibration from the cutting which results in a smooth cut
Machine shop quality dovetail way and gibb construction, designed for years of smooth cuts
Tapered roller bearing spindle supports eliminate play in the spindle for consistently smooth cuts
BL 8944L Includes a multi-speed arbor as well as adjustable rotor and drum feed speeds for ultimate flexibility and control

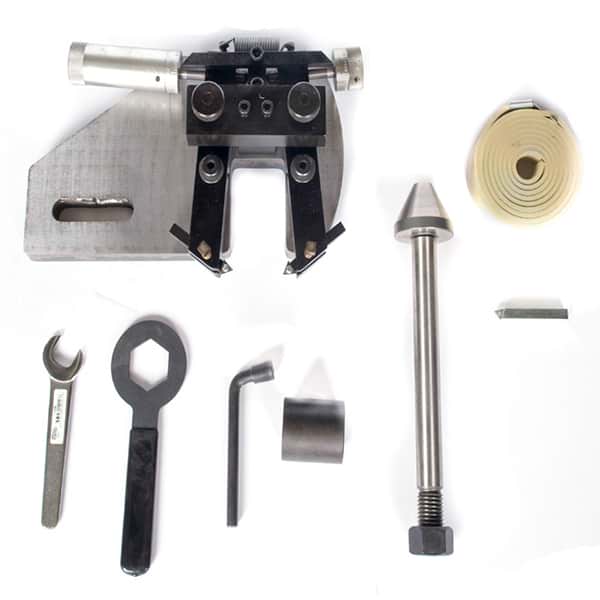

	Included Standard Tools
433701	Arbor 1" (25mm)
433713	Arbor Nut
433702	Drawbar
436410	Wrench, 1-1/2"
434559	Wrench, 7/8" (22mm)
434558	Wrench, 3/8" (10mm)
433750	Twin Cutter Assembly with Right Hand Tool
Holder	(433763) and Straight Tool Holder (433286)
433796	Carbide Inserts, 10pk
433764	Left Hand Tool Holder
433782	Drum Silencer
433774	Spacer, Twin Cutter
433172	Boring Bar Assembly with Short Tool Holder (433779)
433715	Washers
433633	T-Bolt
4B4280	Washer (Qty 2)
433617	Nut (Qty 2)

WARNING: This product may expose you to chemicals including lead which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specifications

PART NUMBER	VBL8944L
Reference Part Number	F00E900218
Single Or Multi-Speed	Multi-Speed
Rotor Capacity	4"–24"
Rotor Capacity	(102 mm – 610 mm)
Rotor Max Width Of Surface	4.5"
Rotor Max Width Of Surface	(114 mm)
Rotor Max Thickness	2.25"
Rotor Max Thickness	(57 mm)
Drum Capacity	6"–28"
Drum Capacity	(152 mm – 711 mm)
Drum Max Depth Of Cut	6"
Drum Max Depth Of Cut	(152 mm)
Flywheel Capacity	6"–24"
Flywheel Capacity	(152 mm – 610 mm)
Flywheel Friction Surface Capacity	6"
Flywheel Friction Surface Capacity	(152 mm)
Drum/Rotor/Flywheel Max Weight (Standard Arbor)	150 LBS
Drum/Rotor/Flywheel Max Weight (Standard Arbor)	(68 kg)
Drum/Rotor/Flywheel Max Weight (Optional 1-7/8" Heavy Duty Arbor Set #434055)	300 lbs
	(136 kg)
spindle Speed	105-150-200 RPM
Rotor Feeds Per Revolution	0.001"–0.010"
Rotor Feeds Per Revolution	(0.025 mm – 0.254 mm)
Drum Feeds Per Revolution	0.0015"–0.015"
Drum Feeds Per Revolution	(0.039 mm – 0.381 mm)
Motor	1 HP
Motor	(0.7 kW)
Weight	500 lbs
	(227 kg)
Includes Bench	NO
Includes #8010 Adaptor Group	NO
Velvet-Turn Extended Warranty*	YES

Shipping

This Item Qualifies for FREE LTL SHIPPING (via Truck) it applies only to destinations within the 48 contiguous United States. Alaska, Hawaii, and any/all US territories and international orders are excluded.

LTL Freight Shipping Options

Lift Gate Is Required.(+$150.00)
I have a forklift for unloading Freight at My Business location
I have a way of unloading Freight at my location
Deliver to local freight terminal for pickup.

Please select one of the choices above BEFORE adding to the cart!

PLEASE NOTE:
This item ships by truck. If you Require to ship to a Non-Commercial Address, please email
or call (706) 478-0072 us so we can give you an updated shipping Quote.

Please Review our Terms of Service, Shipping Policy, Return & Refund, Policy Pages.

Documents

Velvet Turn VBL8944L Specification Sheet
