Zeeline by Milton ZE1035 - 1/2 In. Double Diaphragm Pump
Zeeline by Milton ZE1035 - 1/2 In. Double Diaphragm Pump
BRAND: ZEELINE
SKU: ZE1035
In Stock
Couldn't load pickup availability
ZE1035 - 1/2 in. Double Diaphragm Pump
Model: ZE1035

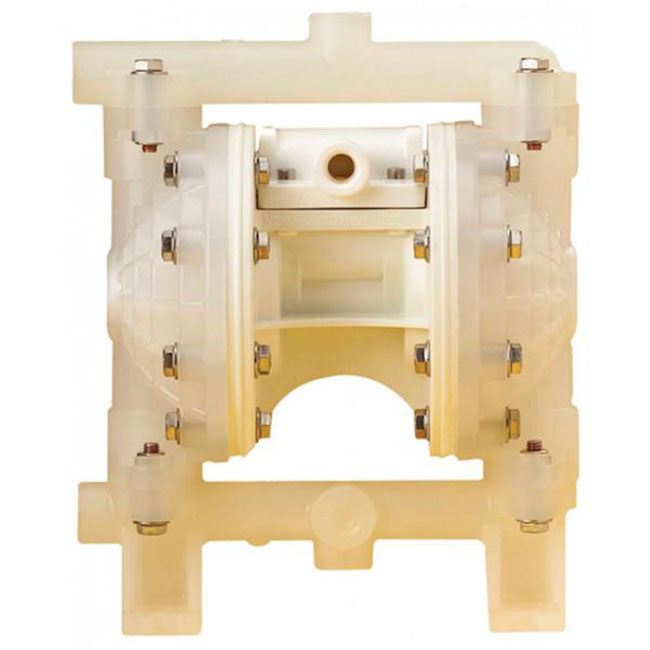

The Zeeline ZE1035 is a robust and efficient air-operated diaphragm pump designed for versatile fluid handling applications. Featuring a durable polypropylene body and advanced Buna N diaphragms, this pump delivers reliable performance and longevity in demanding environments.
Key Features:
- Air Ratio: 1:1, providing balanced and consistent operation.
- Flow Capacity: Handles up to 14 gallons per minute (GPM), making it ideal for medium to high-volume applications.
- Inlet/Outlet Connections: 1/2 in. NPT fluid inlet and outlet ports, with a 1/4 in. NPT air inlet for seamless system integration.
- Material Construction: Polypropylene body, Acetal balls, and Polypropylene seats for excellent chemical resistance.
- Suction Lift: Achieves up to 15 ft. dry and 25 ft. wet suction lift, ensuring reliable performance in varied setups.
- Particle Handling: Handles particles up to 1/8 in., making it versatile for various fluid types.
- Air Efficiency: Consumes 16 CFM of air at 100 PSI for cost-effective operation.
- Compact Design: With a height of 10.6 in. and a bolt pattern of 4.375 in. x 6.75 in., the pump offers easy installation in tight spaces.
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- Air Ratio: 1:1
- Fluid Inlet/Outlet: 1/2 in. NPT
- Max Flow: 14 GPM
- Air Inlet Port: 1/4 in. NPT
- Body Construction: Polypropylene
- Diaphragms: Buna N
- Balls: Acetal
- Seats: Polypropylene
- Ul Listed: No
- Air Consumption: 16CFM @ 100 PSI
- Bolt Pattern: 4.375 in. X 6.75 in.
- Height: 10.600 in.
- Max Particle Size: 1/8 in.
- Suction Lift- Dry: 15 ft.
- Suction Lift-Wet: 25 ft.
