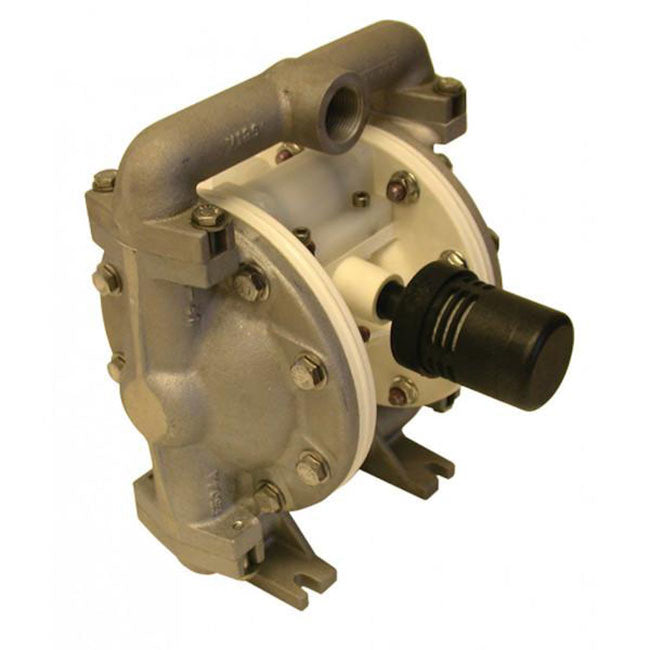

ZE1038 - 3/4 in. Double Diaphragm Pump
Model: ZE1038
The Zeeline ZE1038 is a highly reliable and durable double diaphragm pump, engineered for efficient performance in a wide range of fluid transfer applications. Its aluminum and polypropylene body construction ensures superior strength and chemical resistance, making it a versatile choice for demanding environments.
Key Features:
- Air Ratio: 1:1 for consistent and balanced pumping operation.
- Flow Capacity: Handles up to 14 gallons per minute (GPM), suitable for medium-to-high fluid flow requirements.
- Inlet/Outlet Connections: Features 3/4 in. NPT fluid inlet and outlet ports with a 1/4 in. NPT air inlet for easy integration.
-
Material Construction:
- Body: Aluminum/Polypropylene for durability and chemical compatibility.
- Diaphragms: Buna N for reliable performance and chemical resistance.
- Balls: Acetal, ensuring longevity and smooth operation.
- Seats: Aluminum for enhanced structural integrity.
-
Suction Lift:
- Dry: Up to 15 feet.
- Wet: Up to 25 feet.
- Particle Handling: Capable of handling particles up to 1/8 in., providing flexibility for various fluid types.
- Air Consumption: Requires 16 CFM of air at 100 PSI for optimal efficiency.
- Compact Design: The pump stands at 10.25 in. tall and features a bolt pattern of 3.250 in. x 4.370 in. for easy installation.
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- Air Ratio: 1:1
- Fluid Inlet/Outlet: 3/4 in. NPT
- Max Flow: 14 GPM
- Air Inlet Port: 1/4 in. NPT
- Body Construction: Alum / Polypro
- Diaphragms: Buna N
- Balls: Acetal
- Seats: Aluminum
- Ul Listed: No
- Air Consumption: 16CFM @ 100 PSI
- Bolt Pattern: 3.250 in. X 4.370 in.
- Height: 10.250 in.
- Max Particle Size: 1/8 in.
- Suction Lift- Dry: 15 ft.
- Suction Lift- Wet: 25 ft.
