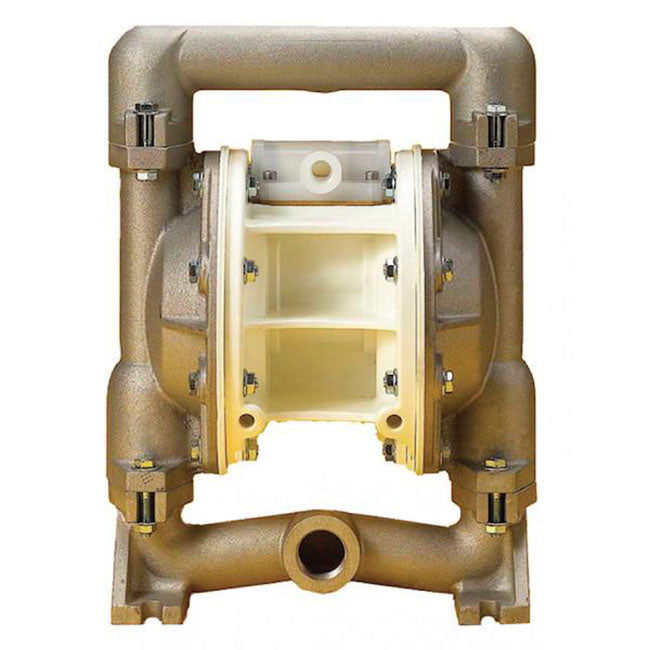

Zeeline by Milton ZE1040 - 1 In. Double Diaphragm Pump
Zeeline by Milton ZE1040 - 1 In. Double Diaphragm Pump
BRAND: ZEELINE
SKU: ZE1040
In Stock
Couldn't load pickup availability
ZE1040 - 1 in. Double Diaphragm Pump
Model: ZE1040
The Zeeline ZE1040 is a powerful and efficient 1-in. double diaphragm pump designed for high-volume fluid transfer applications. Its durable aluminum and polypropylene construction ensures long-lasting performance in demanding industrial environments.
Warning! This item is not suitable for flammable liquids
Key Features:
- Air Ratio: 1:1, providing consistent and reliable operation.
- Flow Capacity: Handles an impressive maximum flow of 37 gallons per minute (GPM), making it ideal for high-demand tasks.
- Inlet/Outlet Connections: Equipped with 1-in. NPT fluid inlet and outlet ports and a 1/4-in. NPT air inlet for easy integration with existing systems.
-
Material Construction:
- Body: Aluminum/Polypropylene for durability and corrosion resistance.
- Diaphragms: Buna N for flexibility and chemical compatibility.
- Balls: Acetal for enhanced durability and smooth operation.
- Seats: Aluminum for structural integrity.
-
Suction Lift:
- Dry: Up to 15 feet.
- Wet: Up to 25 feet.
- Particle Handling: Capable of managing particles up to 1/8 in., providing versatility in handling various fluid types.
- Air Consumption: Operates efficiently at 40 CFM with 80 PSI air pressure.
- Compact Design: Stands 14.125 in.es tall with a bolt pattern of 4.250 in.es x 8.250 in.es, allowing for easy installation in different setups.
Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- Air Ratio: 1:1
- Fluid Inlet/Outlet: 1 in. NPT
- Max Flow: 37 GPM
- Air Inlet Port: 1/4 in. NPT
- Body Construction: Alum / Polypro
- Diaphragms: Buna N
- Balls: Acetal
- Seats: Aluminum
- UL LIisted: No
- Air Consumption: 40CFM @ 80 PSI
- Bolt Pattern: 4.250 in. X 8.250 in.
- Height: 14.125 in.
- Max Particle Size: 1/8 in.
- Suction Lift-Dry: 15 ft.
- Suction Lift- Wet: 25 ft.
