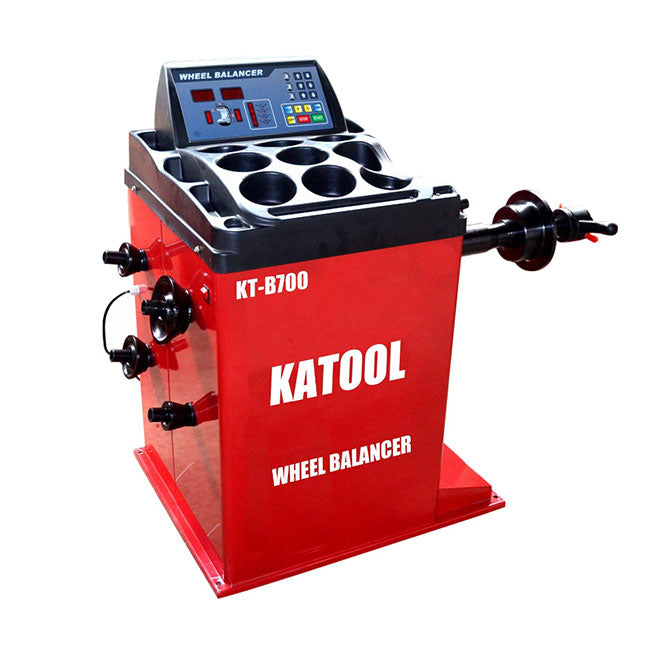

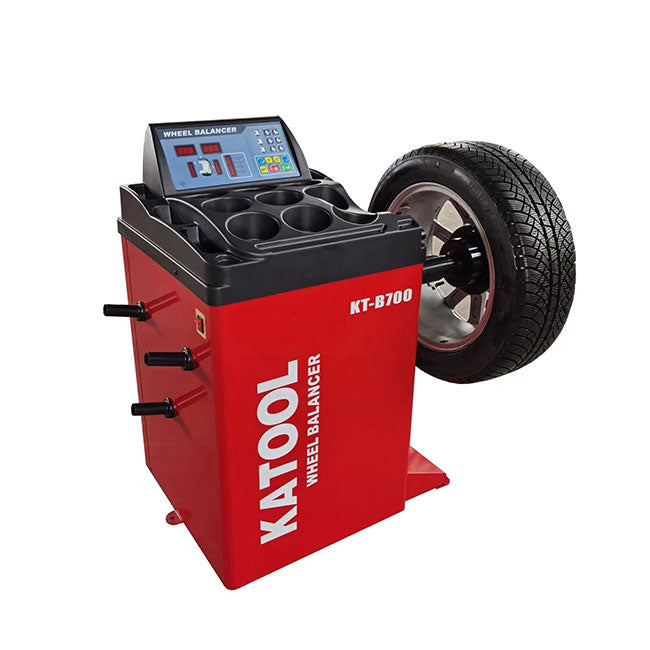

KATOOL KT-B700 Wheel Balancer

KATOOL KT-B700 Wheel Balancer PN KT-B700

Model: KT-B700

The KATOOL KT-B700 Wheel Balancer is designed for professional tire shops, automotive repair facilities, and service garages that need dependable wheel balancing performance with the capacity to handle a wide range of wheel sizes. With ±1g balancing accuracy, 180 rpm balancing speed, and a fast 7-second measuring time, the KT-B700 helps improve shop efficiency while maintaining the precision required for everyday tire service work.

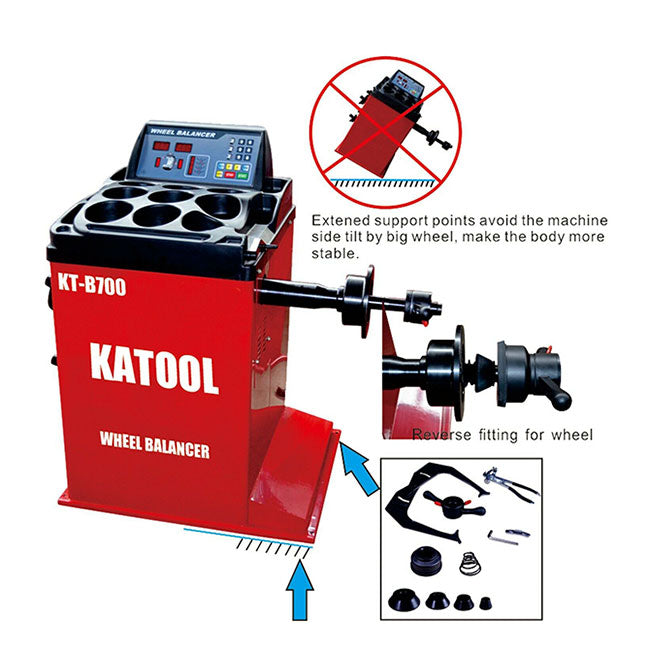

The KT-B700 is built for extended wheel capacity, handling wheels up to 30 in. rim diameter, 34.64 in. overall wheel diameter, 3 in. - 12 in. wheel width, and 143 lbs. wheel weight. The longer shaft design also helps support wider wheel profiles, making the machine suitable for many passenger car, SUV, and light truck wheel service applications.

Heavy-Duty Construction

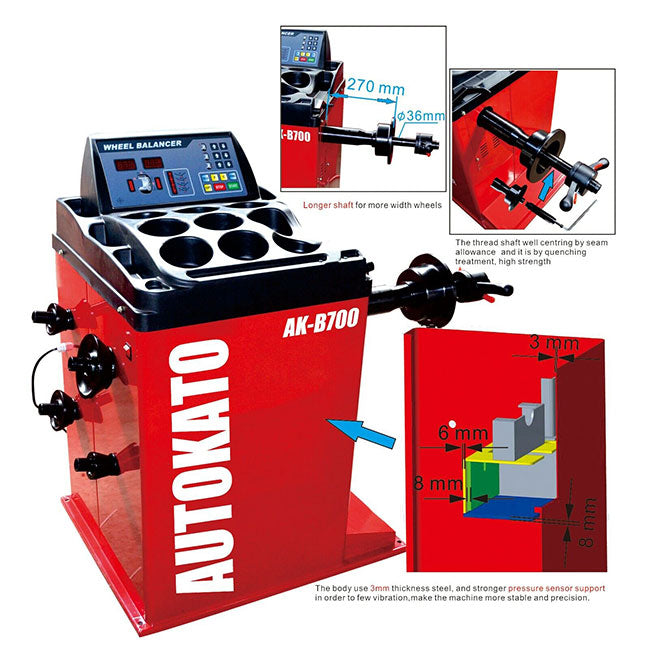

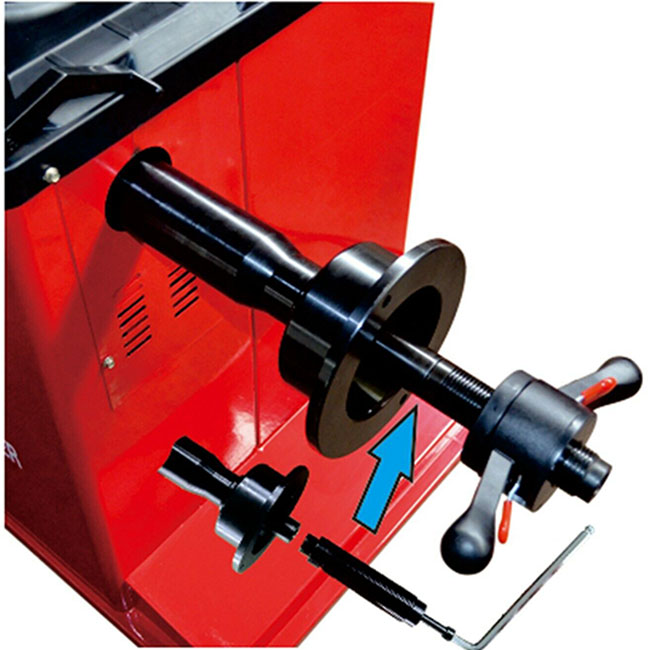

The KT-B700 body uses 3mm-thick steel with high-strength construction, solid welding, and a low-vibration design to help maintain stability during balancing. The all-in-one pressure sensor support design uses 8mm-thick bottom and side boards, helping the sensor work steadily with high precision. The 36mm shaft thread is made with quenching heat treatment for added strength and wear resistance.

Professional Balancing Functions

The KT-B700 includes multiple balancing modes for different rim types, helping technicians balance a wider range of wheel configurations. Built-in fault diagnosis and a self-calibration program with double-side calibration help simplify operation and service checks without requiring preset parameters. Unit selection for ounce/gram and millimeter/inch settings allows the machine to match the shop’s preferred measurement standards.

Reliable Electrical Components

The top-level motor uses pure copper winding for strong power output, faster heat dissipation, lower defect rate, and longer service life. The computer board uses advanced welding technology to help make it moisture proof, dust proof, and antistatic. A high-quality integrated power board helps support stable and reliable operation.

Key Features

• ±1g balancing accuracy for professional wheel balancing precision
• Fast 7-second measuring time for efficient shop workflow
• 180 rpm balancing speed
• Extended capacity range handles wheels up to 30 in. rim diameter, 34.64 in. wheel diameter, 3 in. - 12 in. wheel width, and 143 lbs. wheel weight

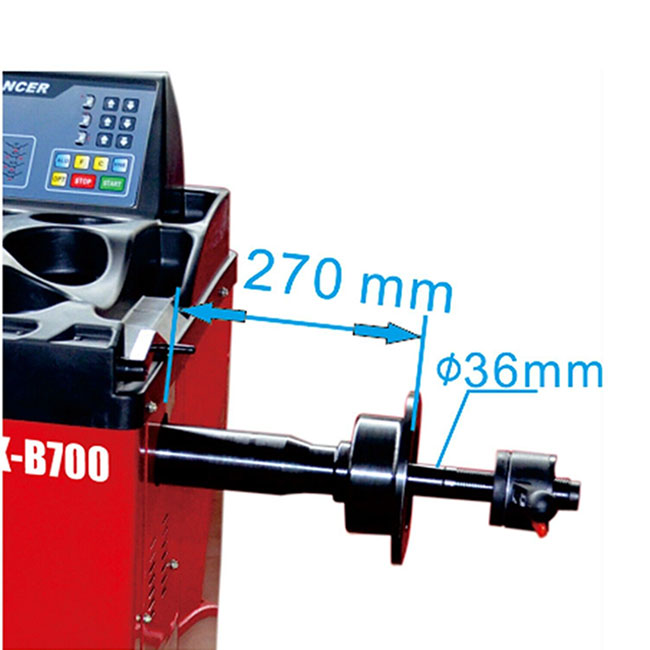

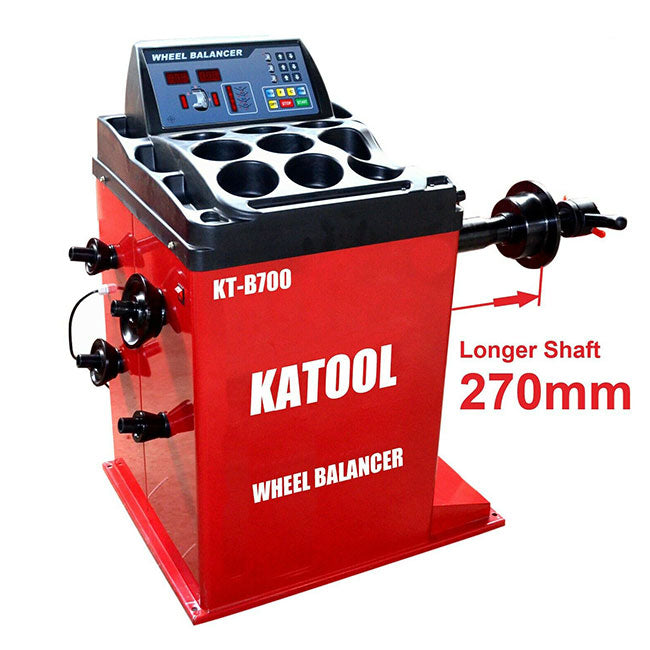

• Longer shaft design helps accommodate wider wheel profiles
• Heavy-duty 3mm-thick steel body with high strength, solid welding, and low vibration
• All-in-one pressure sensor support design with 8mm-thick bottom and side boards for stable, high-precision sensor performance
• Top-level motor with pure copper winding for more power, faster heat dissipation, lower defect rate, and longer service life
• 36mm shaft thread with quenching heat treatment for added strength
• Computer board uses advanced welding technology to help make it moisture proof, dust proof, and antistatic
• Multiple balancing modes for different rim types
• Built-in fault diagnosis and self-calibration program with double-side calibration
• No preset parameters required for easier operation
• Unit selection for ounce/gram and millimeter/inch measurements
• High-quality integrated power board for stable and reliable operation
• Optional wheel guard available

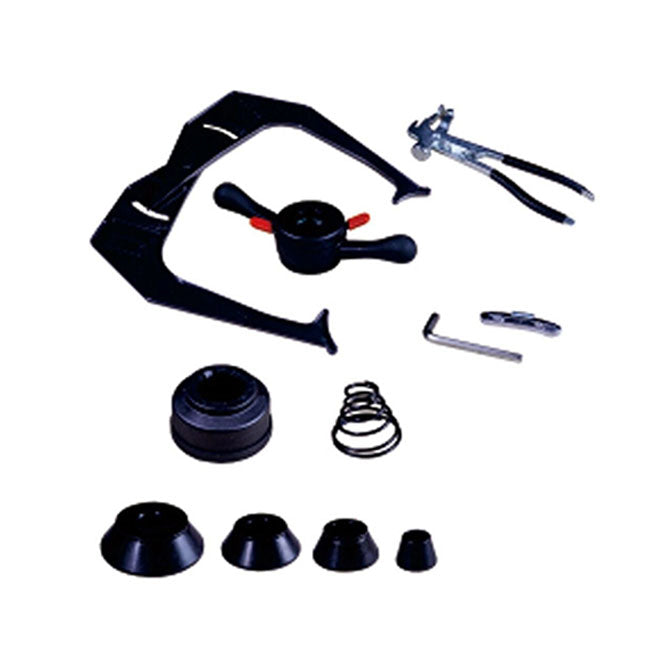

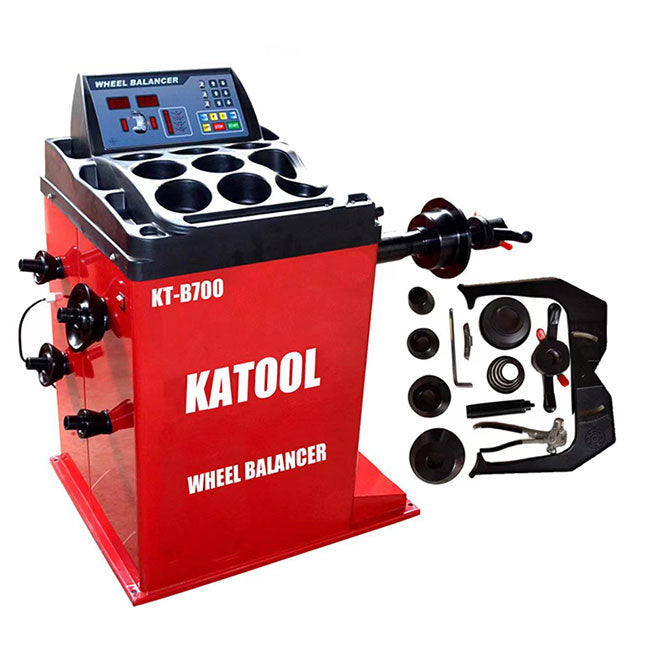

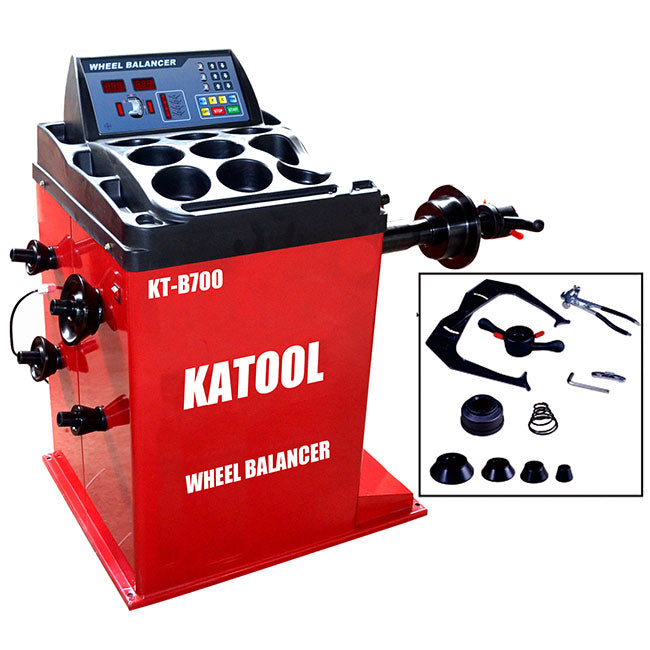

Standard Accessories

• 4 back cones
• 100g weight
• Back cone spring
• Quick nut
• Rim width calipers
• Wheel weight hammer
• Balance bowl
